Related content slider

The Related content slider is made up of two parts, the Related content slider container and Related content slider items. The container is almost identical to the Slider container, the key difference is that you can't control the number of slides. This component enables users to display content type teasers e.g Articles or Products. Editors can manually select specific content they wish to display here. See usage tab for more details.

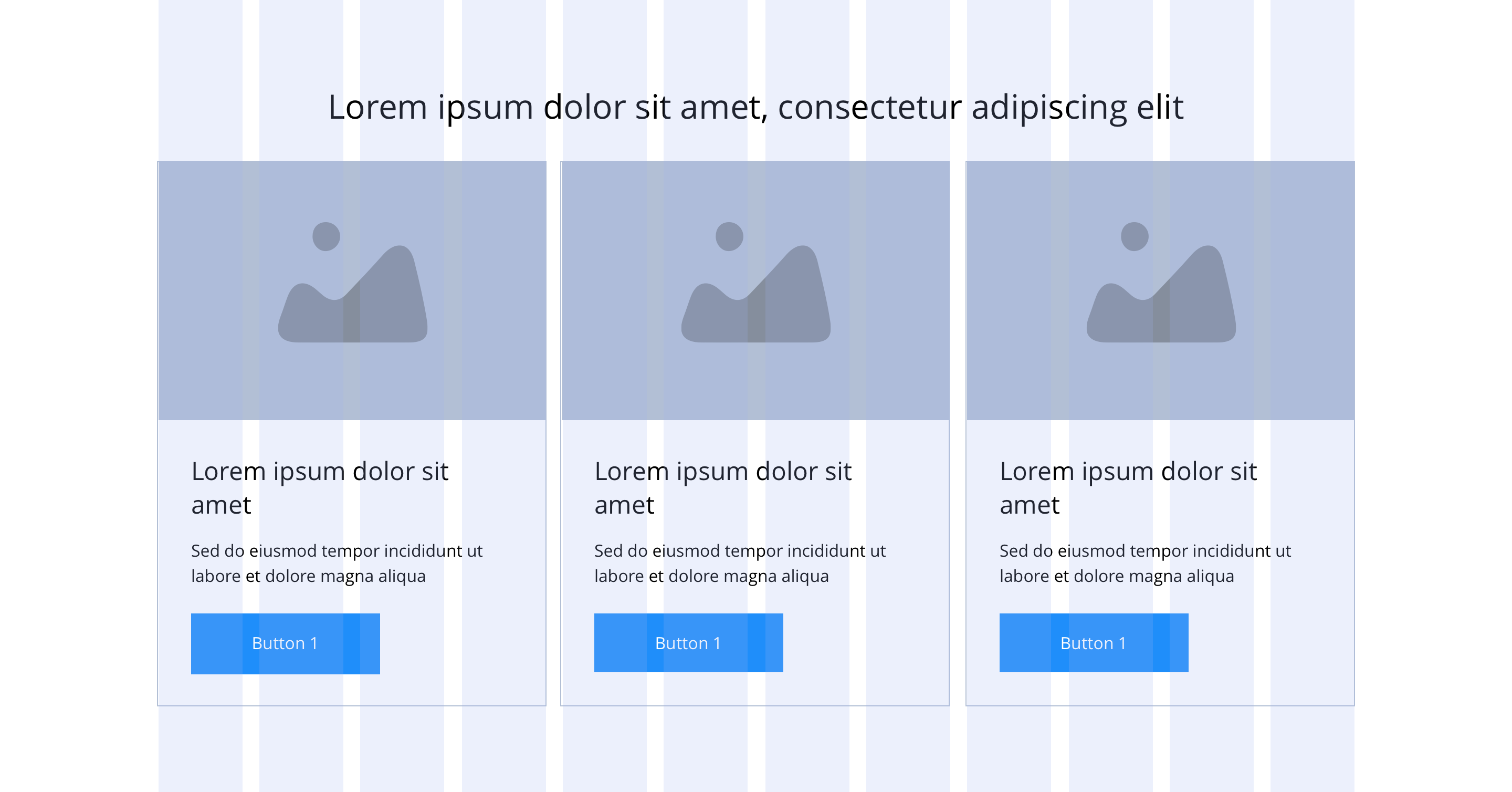

Overview

Overview

Static

Desktop

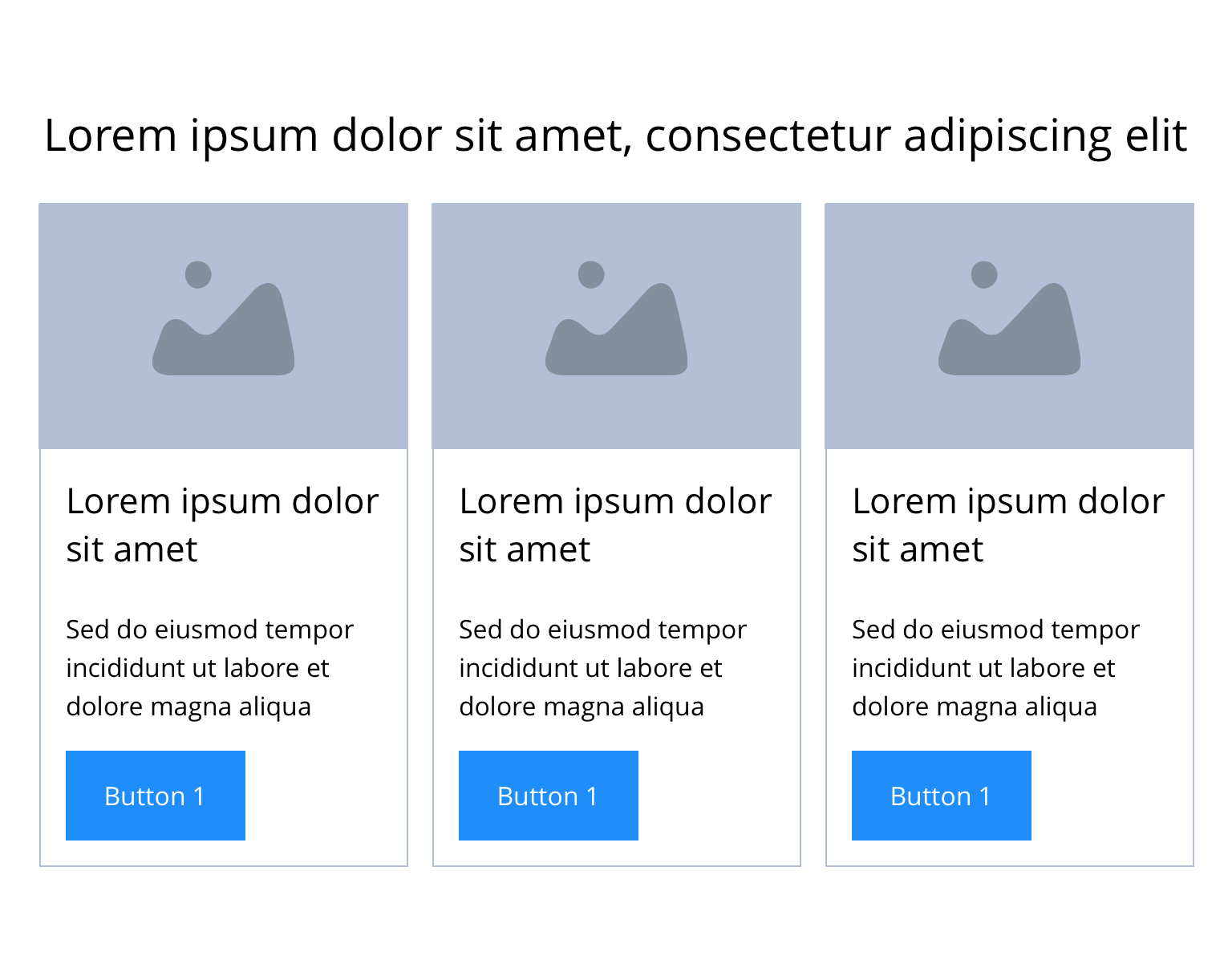

Tablet

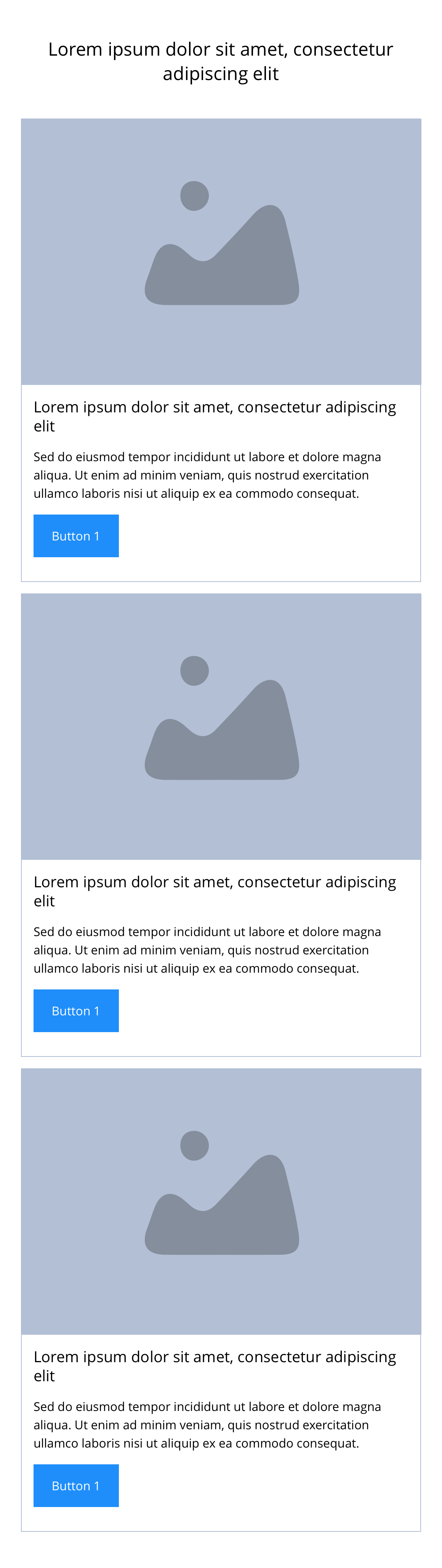

Mobile

Slider

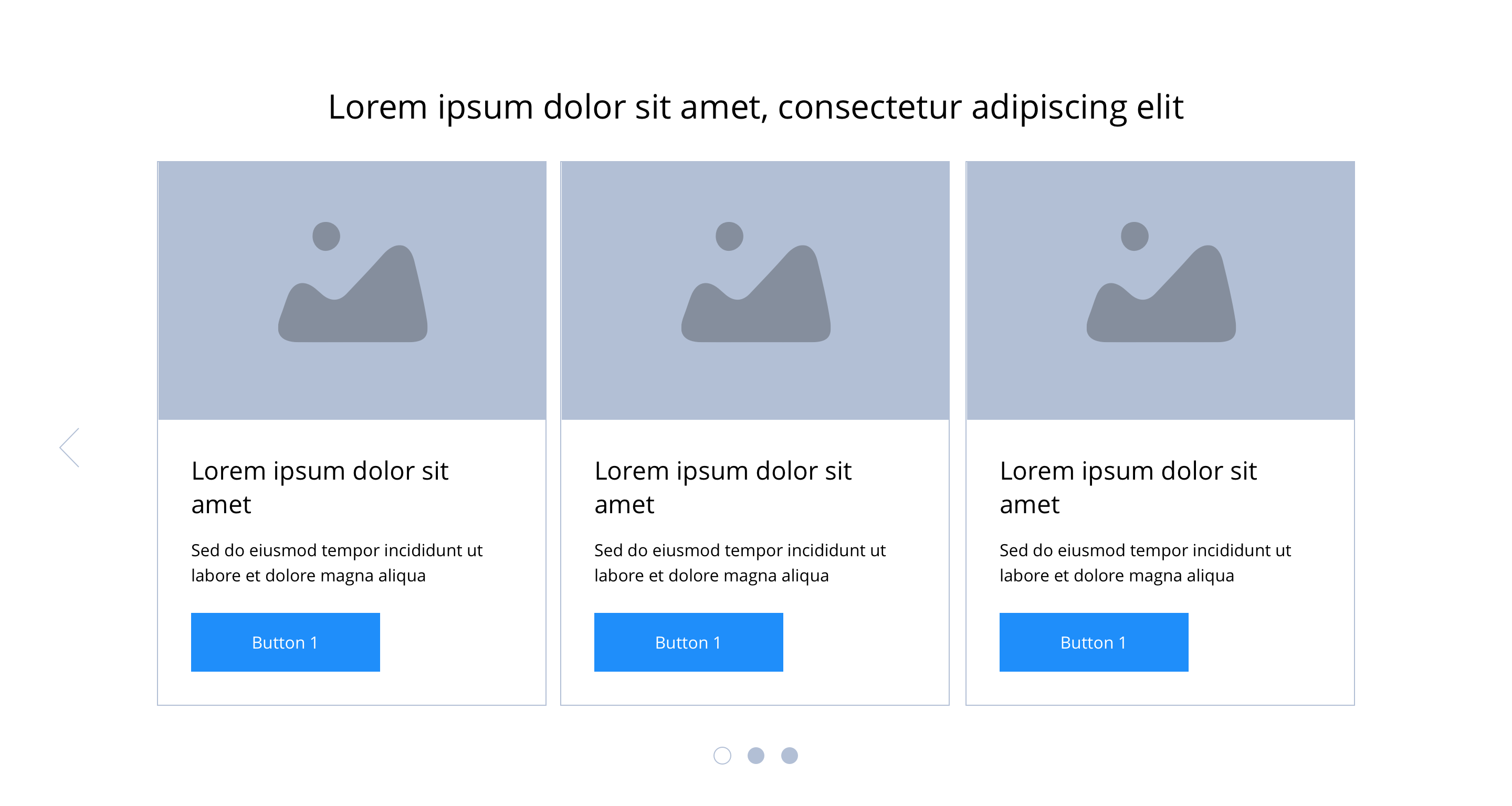

Desktop

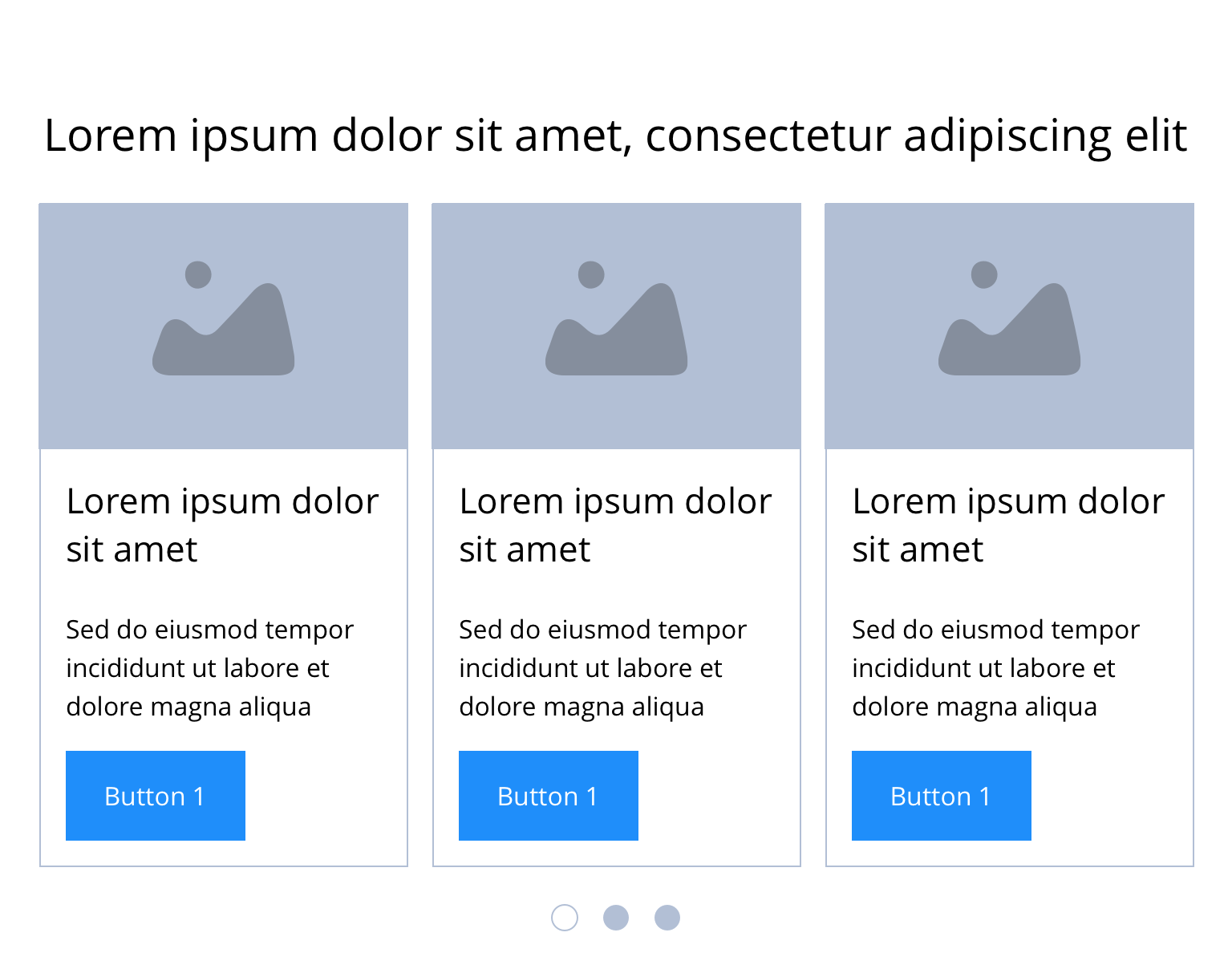

Tablet

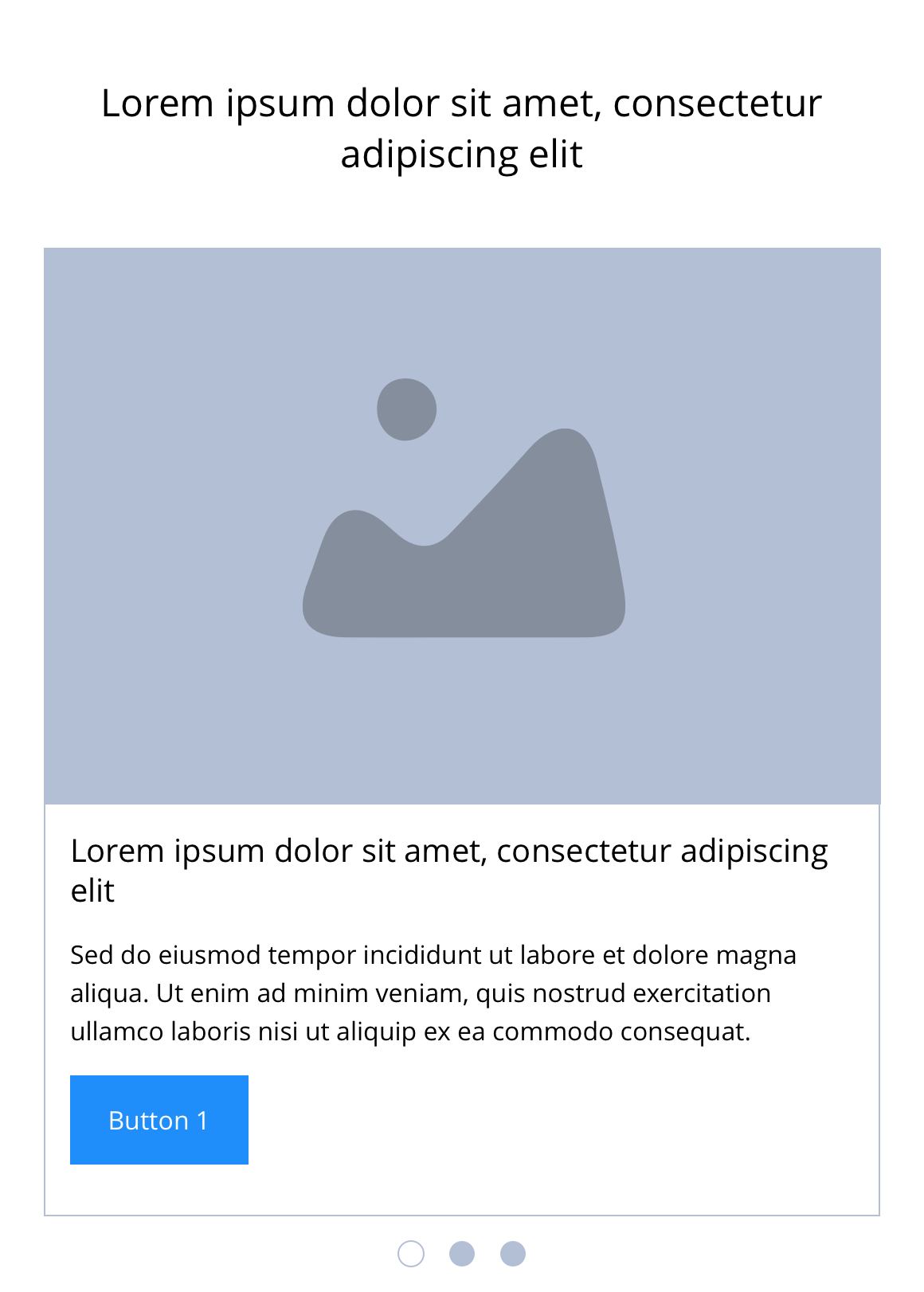

Mobile

Specification

Specification

This provides guidance on the build, layout and content options for this component.

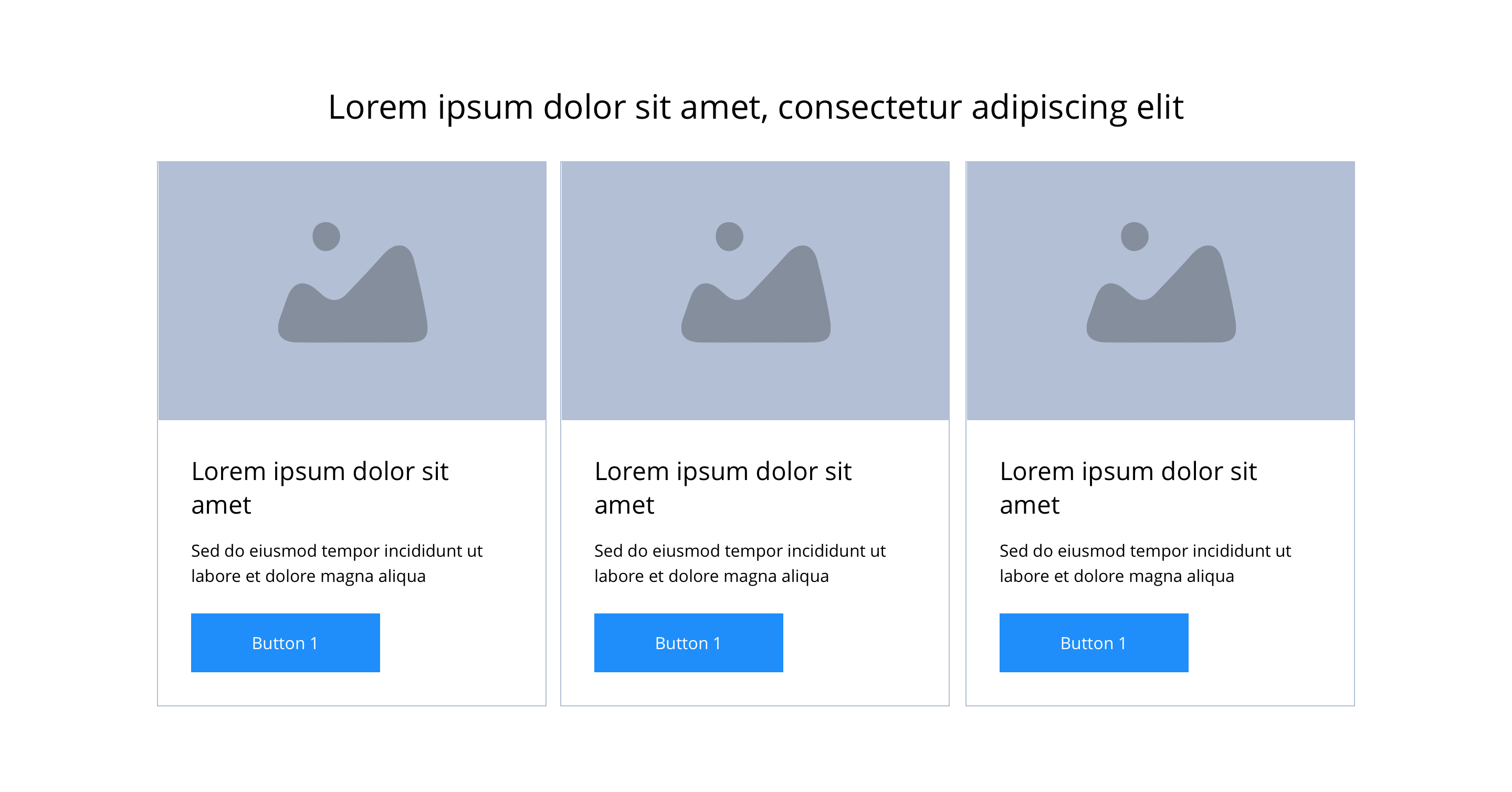

Layout specification

Related content slider container

Component item	Requirement & purpose	Optional or mandatory	CMS options
Height	Expands based on size of content.	n/a	n/a
Width	The content is contained by the grid width. Center aligned - text spans 10 columns max on desktop. 12 columns on tablet and below. Left and right aligned - text spans 10 columns on desktop and tablet. 12 columns on mobile.	Mandatory	Select boxed or full width for dropzone.
Background image	Allows user to set background image. This is full width and set to cover.	Optional	Image uploader.
Background image alignment	Allows control of background image alignment	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Show/hide background image on mobile	Allows editor to hide background image on mobile breakpoint.	Optional	Show or hide.
Background image aria label	The aria-label allows us to specify a string to be used as the accessible label.	Optional	Text input field
Background colour	Allows user to set a background colour on the component.	Optional	Choose from colour palette.
Auto-play setting	Allow user to turn-off or tun-on auto-play to slider	Mandatory	Choose from the drop-down. On/Off. By default value will be on
Content alignment	Controls content horizontal alignment.	Optional	Left, centre or right.
Slider navigation colour	Allows user to overwrite the colour set for slider navigation in the Style Guide Manager.	Optional	Choose from colour palette.
Slider pagination active colour	Allows user to overwrite the colour set for the active pagination in the Style Guide Manager.	Optional	Choose from colour palette.
Slider pagination inactive colour	Allows user to overwrite the colour set for the inactive pagination in the Style Guide Manager.	Optional	Choose from colour palette.
Card View Type	Allow user to select slider type [1] Normal view and [2] Creative view	Optional	Drop-down [1] Normal view and [2] Creative view
Slide To Scroll	Allow user to select slide to scroll based on the card view	Mandatory	Drop-down with option 1 or 3
Dropzone width	The content within the dropzone can be constrained to the the box grid or set to full width.	Mandatory	Boxed width or full width.
Padding top and bottom	Allows control of the top and bottom spacing within this component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Margin bottom	Allows control of the spacing below the component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Pre-heading text	Allows user to set a pre-heading before H1.	Optional	Text input.
Pre-heading text colour	Sets pre-heading colour.	Optional	Choose from colour palette.
Heading text	Sets heading text.	Optional	Text input.
Heading element	Sets H2, H3 or H4 on component.	Optional	Select heading element.
Heading style	Allows user to choose where more than one type of heading style may be present (i.e. multiple H2's).	Optional	Select heading style.
Heading colour	Sets heading colour.	Optional	Choose from colour palette.
Paragraph text	Sets paragraph content.	Optional	Text input.
Paragraph style	Sets paragraph style.	Optional	Paragraph style select.
Paragraph colour	Sets paragraph colour.	Optional	Choose from colour palette.
WYSIWYG	Allows user to format text where additional styles may be required.	Optional	WYSIWYG.
Link 1 (above dropzone)	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Link 2 (above dropzone)	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Alternative CTA (below dropzone)	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Footnote text and colour	Sets footnote content and colour.	Optional	Text input. Choose from colour palette.

Interaction

These are the interactive aspects of the component.

Interaction
On click block links to featured content.
Slider navigation switches between slides.
Slider pagination switches between slides.
Swipe/drag switches between slides.
On mouseover/ hover the slider pauses if set to auto slide.

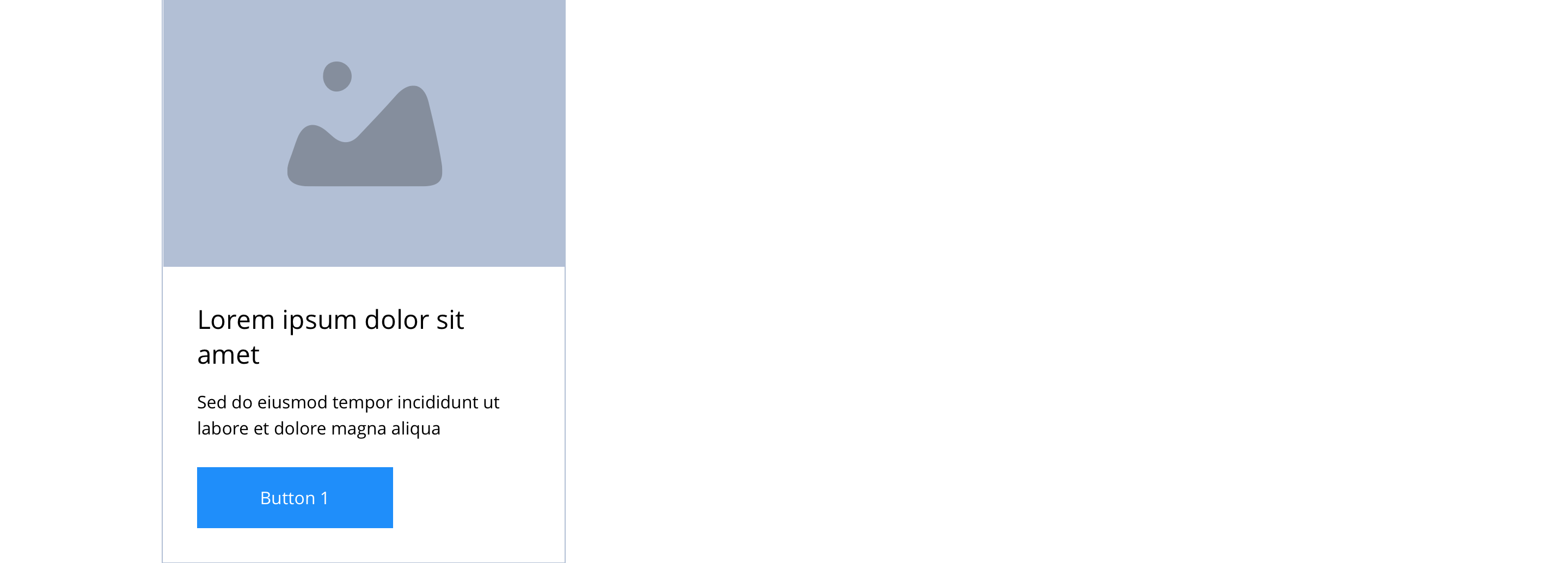

Related content slider item

Related content slider item

Content is added via the content type (e.g Article or Product).

Component item	Requirement & purpose	Optional or mandatory	CMS options
Entity	Allows the user to select what content to display. i.e. Article or Product teaser.	Mandatory	Text input.

Layout and Style

Property	Requirement & purpose	Default	CMS Options
Custom styling	To enable component level style override	Off	On/Off
Heading colour	Sets the site wide teaser heading colour.	Unselected	Choose from colour palette.
Background colour	Sets the site wide teaser background colour.	Unselected	Choose from colour palette.
Border width	Sets the site wide teaser border width.	0px	Choose size within range slider.
Border colour	Sets the site wide teaser border colour.	n/a	Choose from colour palette.
Border radius	Sets the site wide teaser border radius.	0	Text input (e.g 0px, 4px, 8px).
Link style	Sets the site wide teaser link style of the CTA.	Primary text link	Select link style.
Text Panel Padding: Padding top	To enable text area padding-top for teaser	On	On/Off
Text Panel Padding: Padding bottom	To enable text area padding-bottom for teaser	On	On/Off
Text Panel Padding: Padding left	To enable text area padding-left for teaser	On	On/Off
Text Panel Padding: Padding right	To enable text area padding-right for teaser	On	On/Off
Drop shadow	Adds a site wide drop shadow around the teasers.	Off	On/off.

Animation

For each link there will be option to add button animation. Animation configuration option will be following

Button animate	Allows users to switch On/Off the animation functionality for the button link.	Optional	On/off.
Select animation	Allow user to select animation from the drop-down list.	Optional	Select list
Duration	Set how long in seconds the animation will take to run	Required	Numeric Input
Delay	Set a start delay on the animation in seconds	Optional	Numeric Input
Iteration	Set the number of times the animation should run	Optional	Numeric Input (Maximum two)
Offset	Set the animation to start at a specific offset before or after the element has entered the viewport	Optional	Numeric Input (Pixel)

Style Guide Manager

These are the Style Guide Manager settings that are specific to this component. For global settings see the Style Guide Manager section.

Product teaser

Property	Requirement & purpose	Default	SGM override
Heading element	Sets H2, H3 or H4 site wide on the teasers.	H4	Select heading element.
Heading colour	Sets the site wide teaser heading colour.	Black	Choose from colour palette.
Link style	Sets the site wide teaser link style of the CTA.	Primary text link	Select link style.
Background colour	Sets the site wide teaser background colour.	White	Choose from colour palette.
Border width	Sets the site wide teaser border width.	0px	Choose size within range slider.
Border colour	Sets the site wide teaser border colour.	n/a	Choose from colour palette.
Border radius	Sets the site wide teaser border radius.	0	Text input (e.g 0px, 4px, 8px).
Drop shadow	Adds a site wide drop shadow around the teasers.	Off	On/off.

Article teaser

Property	Requirement & purpose	Default	SGM override
Heading element	Sets H2, H3 or H4 site wide on the teasers.	H4	Select heading element.
Heading colour	Sets the site wide teaser heading colour.	Black	Choose from colour palette.
Link style	Sets the site wide teaser link style of the CTA.	Primary text link	Select link style.
Background colour	Sets the site wide teaser background colour.	White	Choose from colour palette.
Border width	Sets the site wide teaser border width.	0px	Choose size within range slider.
Border colour	Sets the site wide teaser border colour.	n/a	Choose from colour palette.
Border radius	Sets the site wide teaser border radius.	0	Text input (e.g 0px, 4px, 8px).
Drop shadow	Adds a site wide drop shadow around the teasers.	Off	On/off.

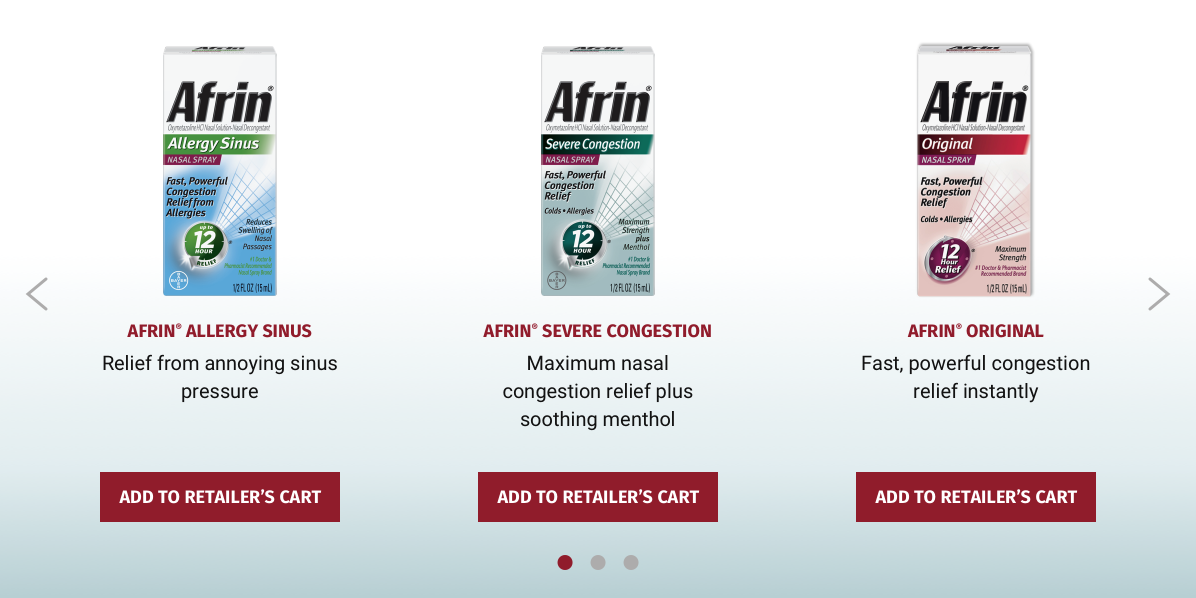

Examples in-situ

Usage

General usage dos and don'ts

✅ Dos	❌ Don'ts
These components should only be used to display content type teasers. i.e. Articles or Products.	Select other content types that do not have teaser content i.e. a basic page or FAQ.
Ensure the text is legible.	Do not use a background image that makes the text hard to read.
The content selectable here are the teasers for the specific content type. i.e. an article or a product. As such, if a user changes the content in the Product type teaser, this content will update site wide.
This component allows users to add as many teasers as required. If only three items are selected, as per our stacking rules, this will trigger a slider at mobile breakpoint. Add more than three Related content slider items and this will also trigger the slider functionality at desktop.
