2/3 text over background image

The 2/3 text over background image component is a full width text and image section. It has an option to position text directly over the background image or contain it within a panel. It can be customised further as described in the specification tab below.

Overview

Overview

Text spans 2/3 of the grid, within a container and the background image or colour is set to full width.

---

Desktop

Text left

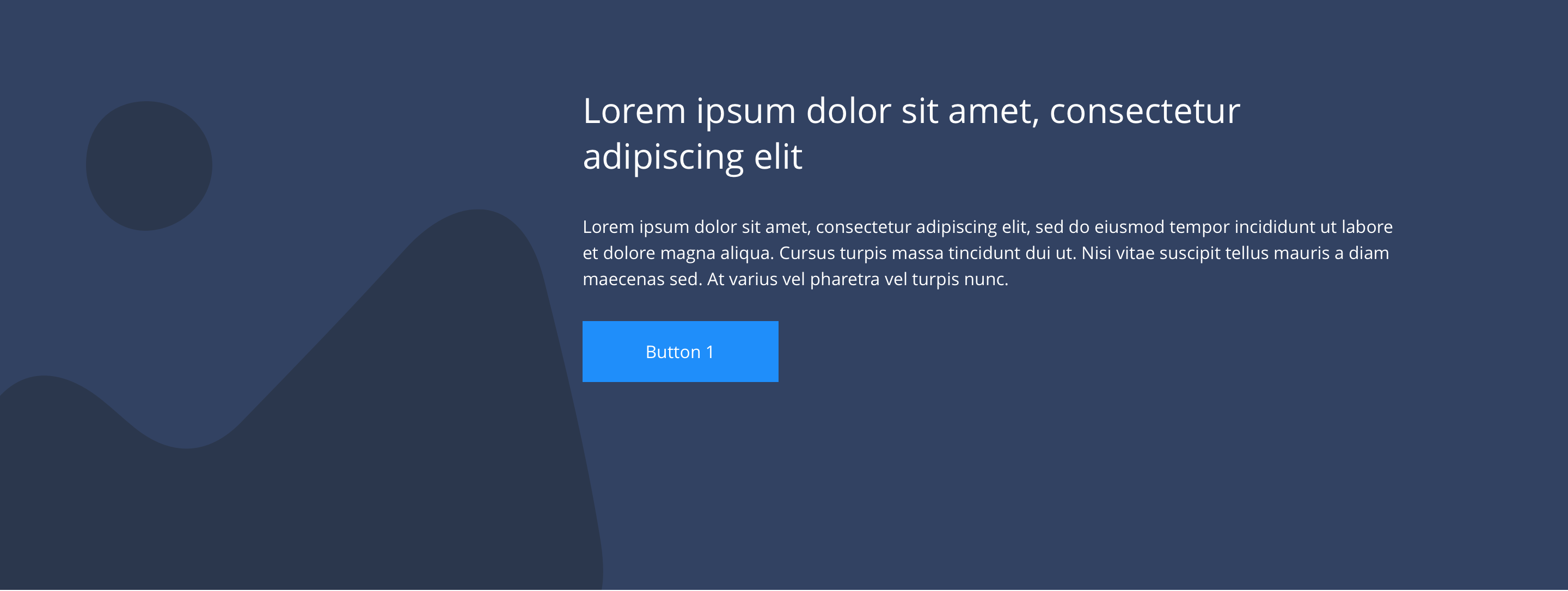

Text right

---

Tablet

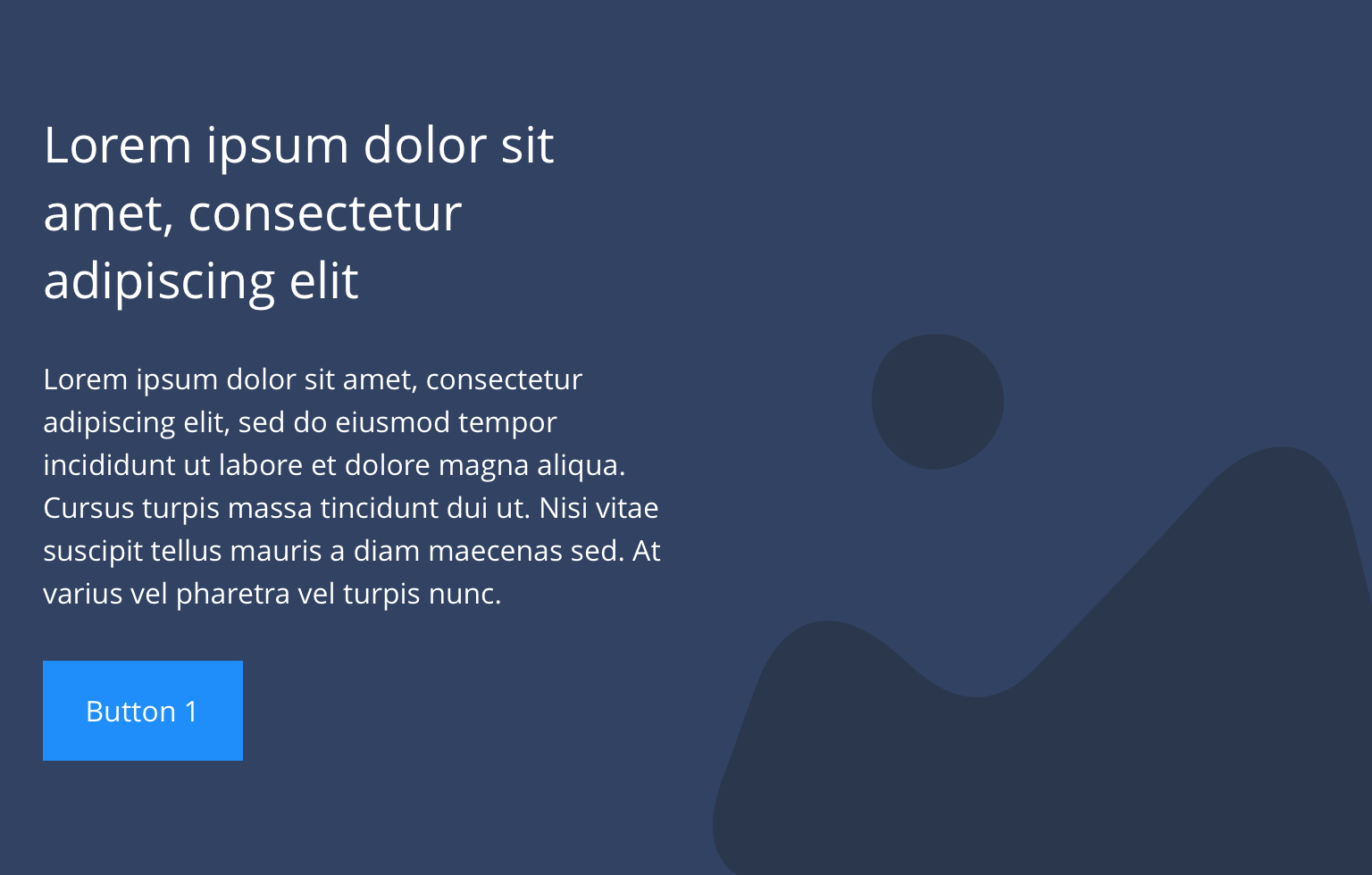

Text left

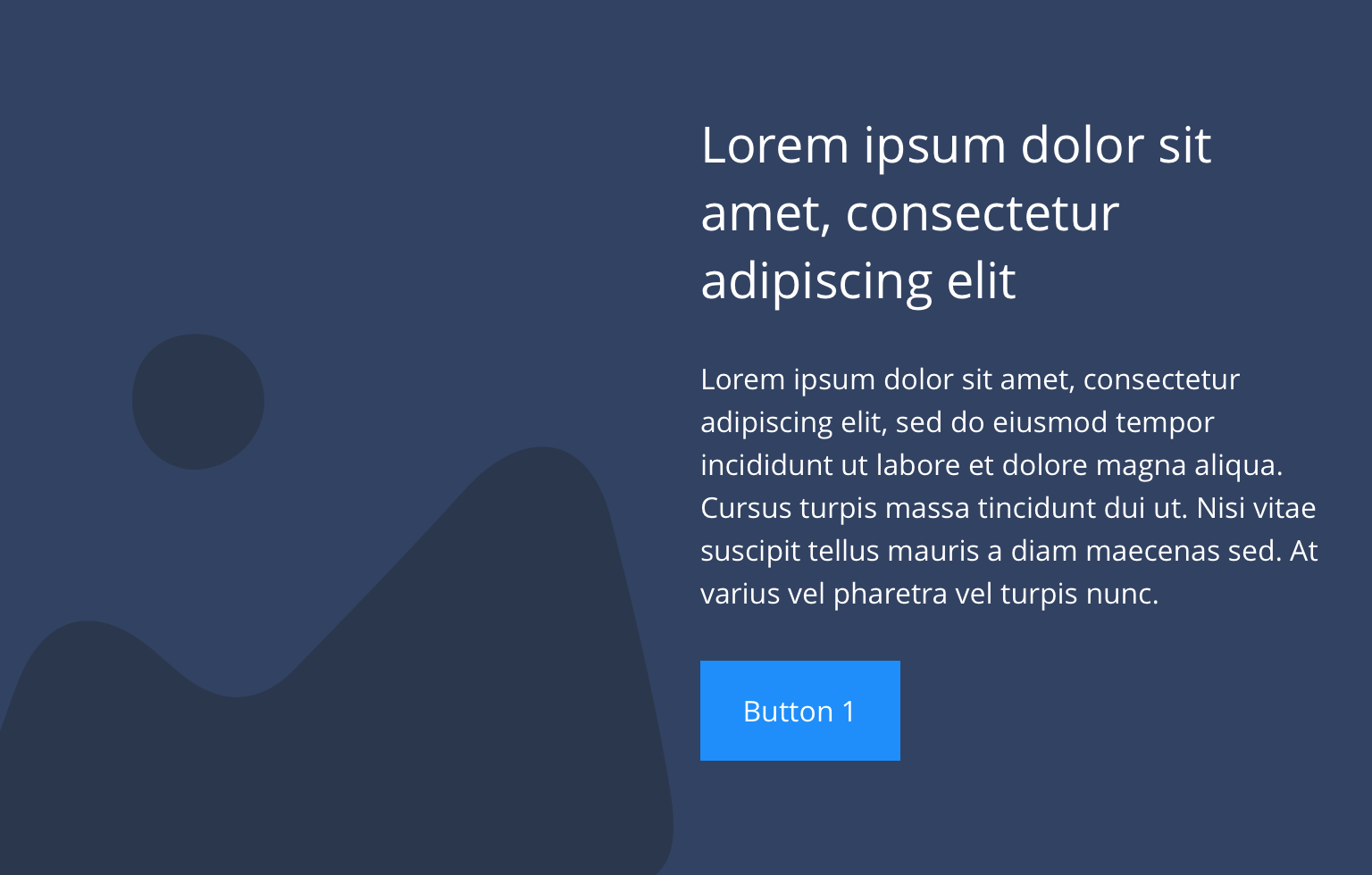

Text right

Mobile

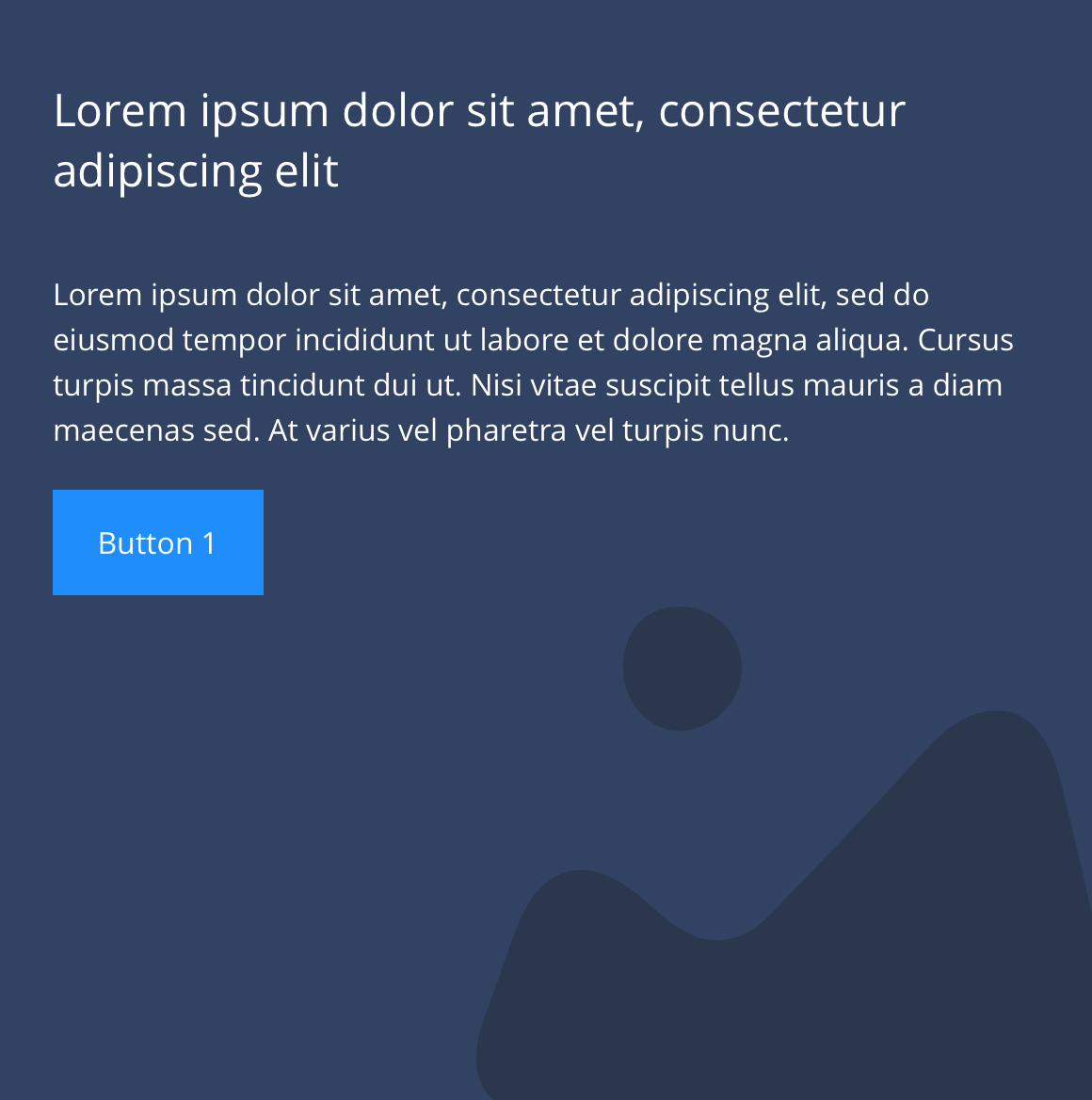

Text left

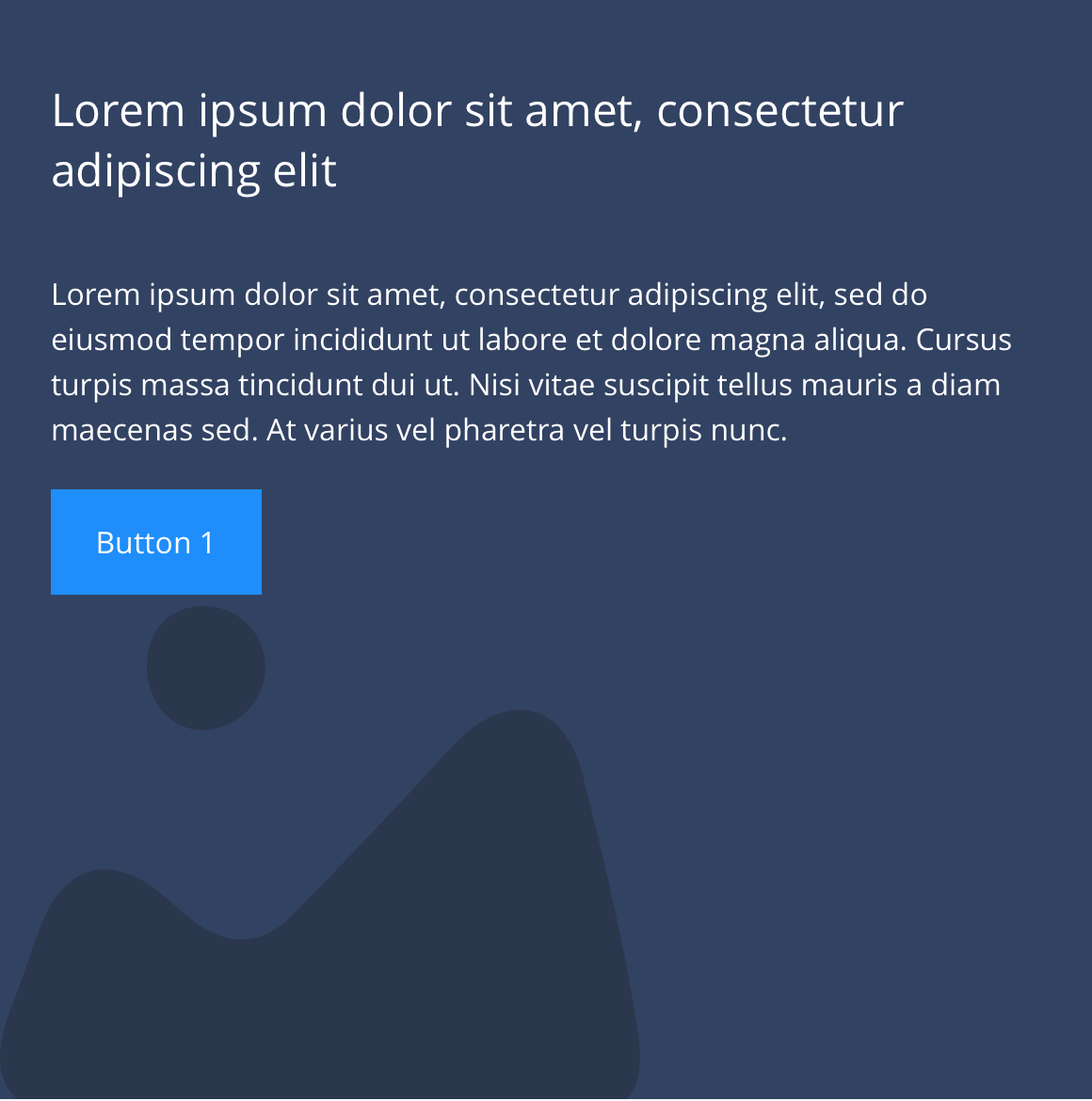

Text right

---

Specification

Specification

This provides guidance on the build, layout and content options for this component.

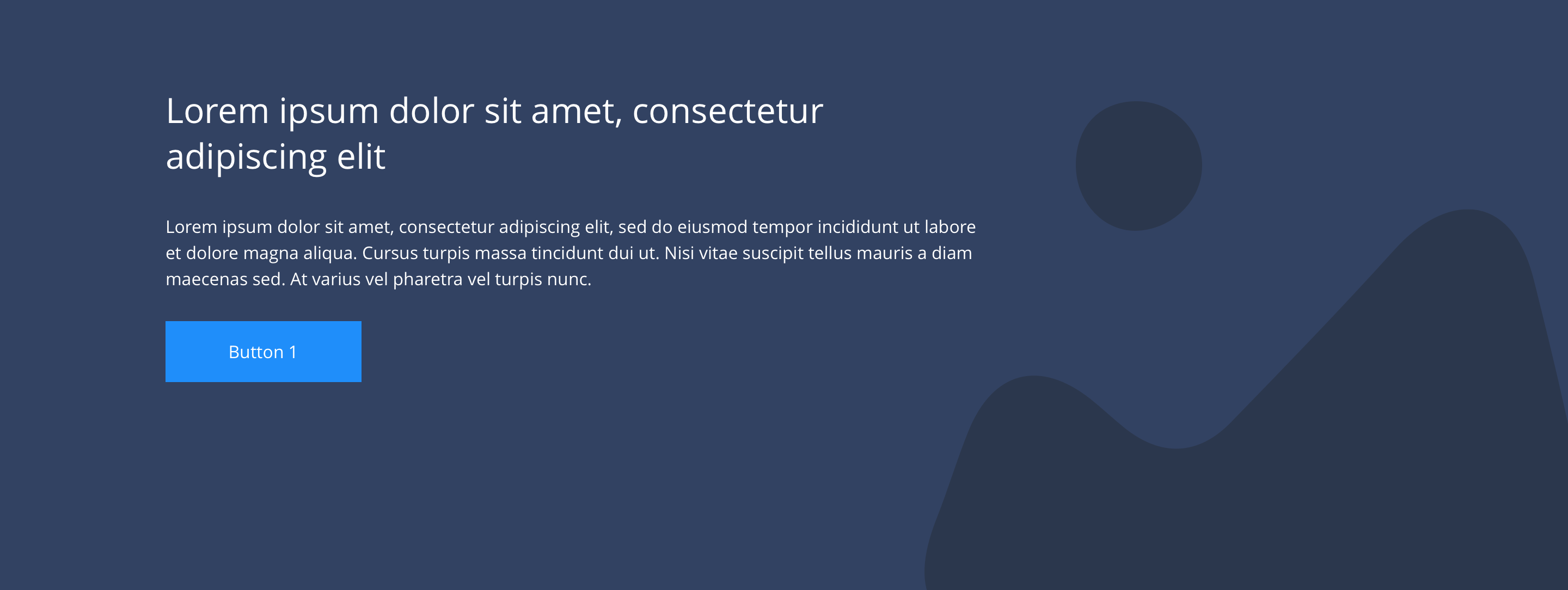

Layout specification

---

Component item	Requirement & purpose	Optional or mandatory	CMS options
Minimum height	Sets minimum height of component for each breakpoint. Component expands based on content.	n/a	Set globally via SGM and affects all instances of the component on the site.
Width	The container is set full width. Content is constrained to the width of the grid.	n/a	n/a
Lazy Load toggle	Allows the user to switch On/Off the Lazy Load functionality for the background image.	Option	On/Off
Desktop background image	Allows user to set a background image. This is full width and set to cover.	Optional	Image uploader.
Desktop background image alignment	Allows control of background image alignment.	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Mobile background image	Allows user to set a background image. This is full width and should be set to cover.	Optional	Image uploader.
Background image aria label	The aria-label allows us to specify a string to be used as the accessible label.	Optional	Text input field
Mobile background image alignment	Allows control of background image alignment.	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Show/hide background image on mobile	Allows editor to hide background image on mobile breakpoint.	Optional	Show/hide.
Background colour	Allows user to set a background colour on the component.	Optional	Choose from colour palette.
Text alignment	Controls text alignment.	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Text alignment on mobile	Controls text alignment.	Optional	Horizontally align left, centre or right.
Text position	Controls position of text.	Mandatory	Left or right.
Text panel background and colour	Sets a coloured background panel behind text. When applied, padding automatically matches the SGM block padding value.	Optional	Show/hide. Choose from colour palette.
Full border	Allows a full width border to be added to the component.	Optional	On/off.
Full border width	Sets the border width.	Optional	Add a px value.
Full border colour	Sets the border colour.	Optional	Choose from colour palette.
Border bottom	Allows a boxed width border to be added to the bottom of the component.	Optional	On/off.
Border bottom width	Sets the border width.	Optional	Add a px value.
Border bottom colour	Sets the border colour.	Optional	Choose from colour palette.
Padding top and bottom	Allows control of the top and bottom spacing within this component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Margin bottom	Allows control of the spacing below the component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Heading text	Sets heading text.	Optional	Text input.
Heading element	Sets H2, H3, H4 or H5 on component.	Optional	Select heading element.
Heading style	Allows user to choose where more then one type of heading style may be present (i.e. multiple H2's).	Optional	Select heading style.
Heading colour	Sets heading colour.	Optional	Choose from colour palette.
Paragraph	Sets paragraph content.	Optional	Text input.
Paragraph style	Sets paragraph style.	Optional	Paragraph style select.
Paragraph colour	Sets paragraph colour.	Optional	Choose from colour palette.
WYSIWYG	Allows user to format text where additional styles may be required.	Optional	WYSIWYG.
PWA	To enable PWA CTA	Optional	Toggle Button
Link 1	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Button Shapes	Allows user to select different button shapes.	Optional	Select from dropdown

Interaction

These are the interactive aspects of the component.

Interaction
Link 1 links to either a defined page or can launch a modal.

Animation

For each link there will be option to add button animation. Animation configuration option will be following

Button animate	Allows users to switch On/Off the animation functionality for the button link.	Optional	On/off.
Select animation	Allow user to select animation from the drop-down list.	Optional	Select list
Duration	Set how long in seconds the animation will take to run	Required	Numeric Input
Delay	Set a start delay on the animation in seconds	Optional	Numeric Input
Iteration	Set the number of times the animation should run	Optional	Numeric Input (Maximum two)
offset	Set the animation to start at a specific offset before or after the element has entered the view port	Optional	Numeric Input (Pixel)

Animation Container

Select animation	Allow user to select animation from the drop-down list.	Optional	Select list
Duration	Set how long in seconds the animation will take to run	Required	Numeric Input
Delay	Set a start delay on the animation in seconds	Optional	Numeric Input
Iteration	Set the number of times the animation should run	Optional	Numeric Input (Maximum two)
offset	Set the animation to start at a specific offset before or after the element has entered the view port	Optional	Numeric Input (Pixel)

Style Guide Manager

These are the Style Guide Manager settings that are specific to this component. For global settings see the Style Guide Manager section.

Property	Default	SGM override
Minimum height	Desktop - 440px Tablet - 400px Mobile - 584px	Desktop Tablet Mobile

Examples in-situ

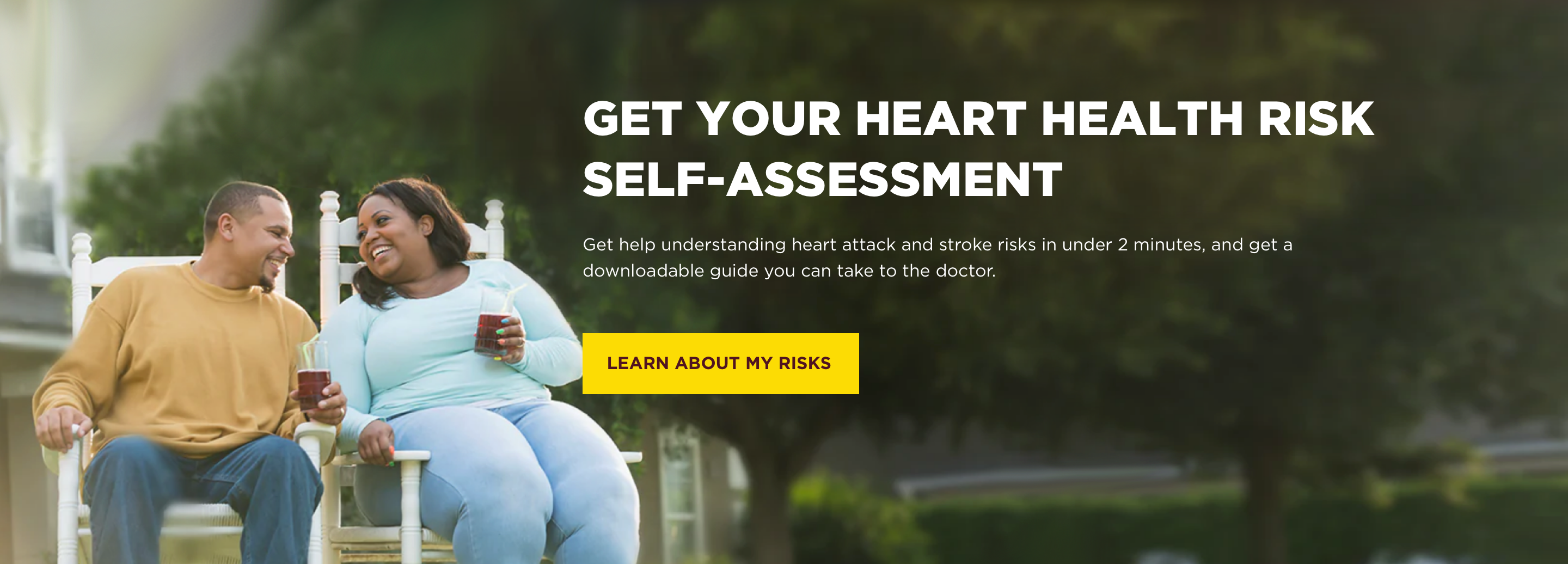

Desktop

Aspirin

---

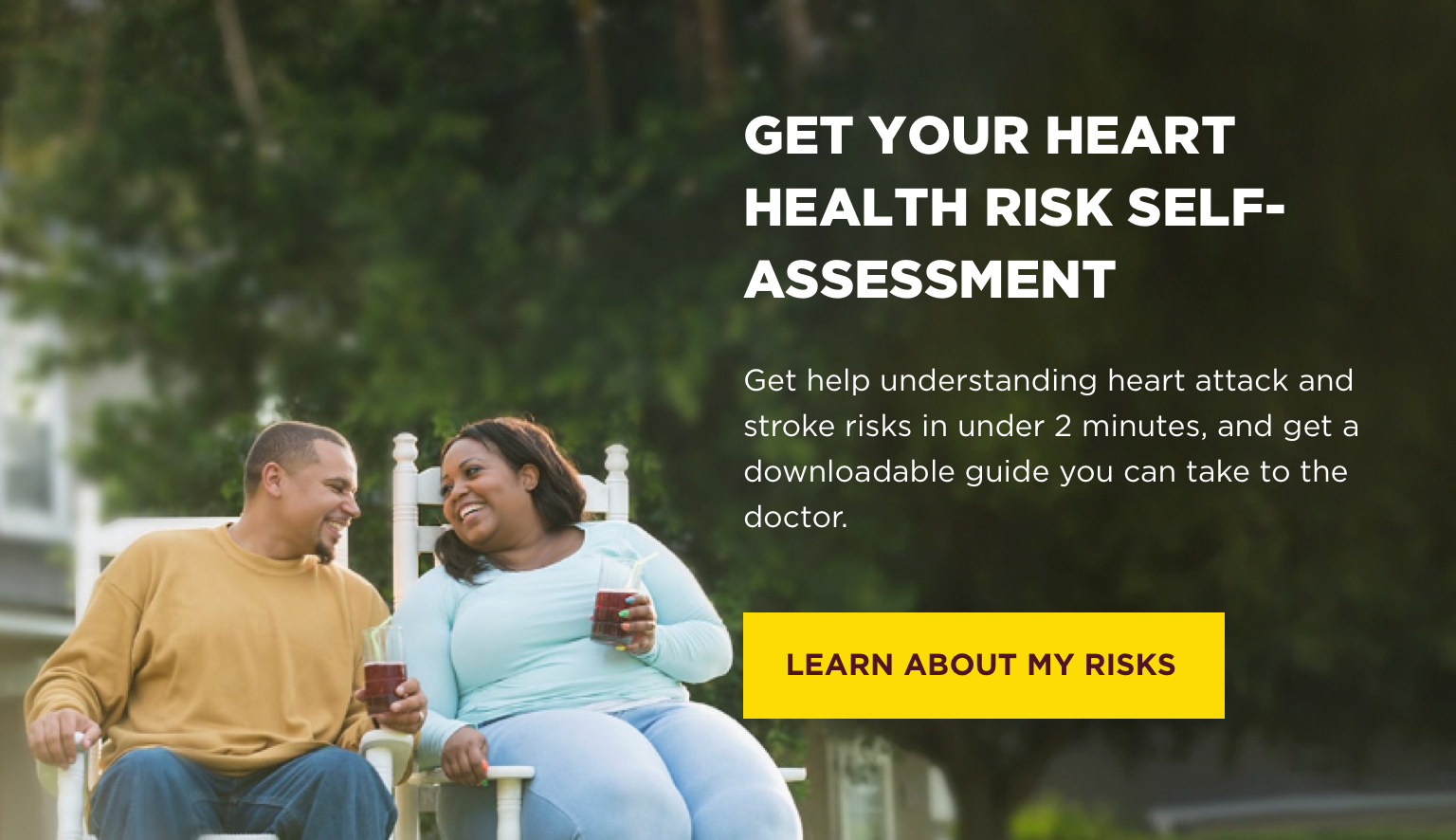

Tablet

Aspirin

---

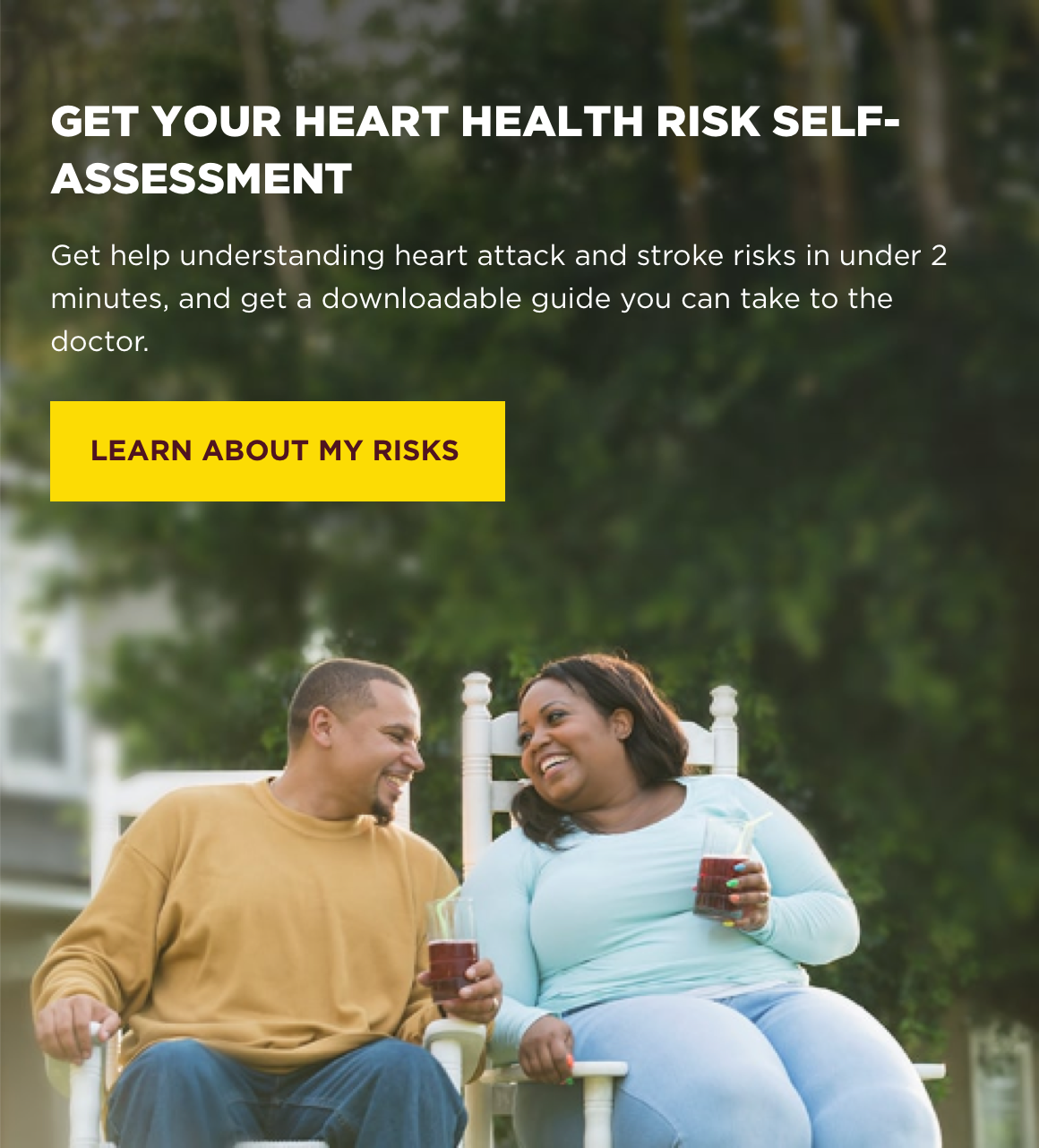

Mobile

Aspirin

---

Usage

General usage dos and don'ts

✅ Dos	❌ Don'ts
Ensure the text is legible.	Do not use a background image that makes the text hard to read.
Read our guidance on imagery.
Read our guidance on videos.
Read our guidance on the use of WYSIWYGs.
