No link - Block 2 - Image & text horizontal

The No link - Block 2 - Image & text horizontal component can span either 1/2 or 2/3 of the grid. It can be customised as described in the specification tab below. Please see usage tab for guidance on adding images to this component.

Overview

Overview

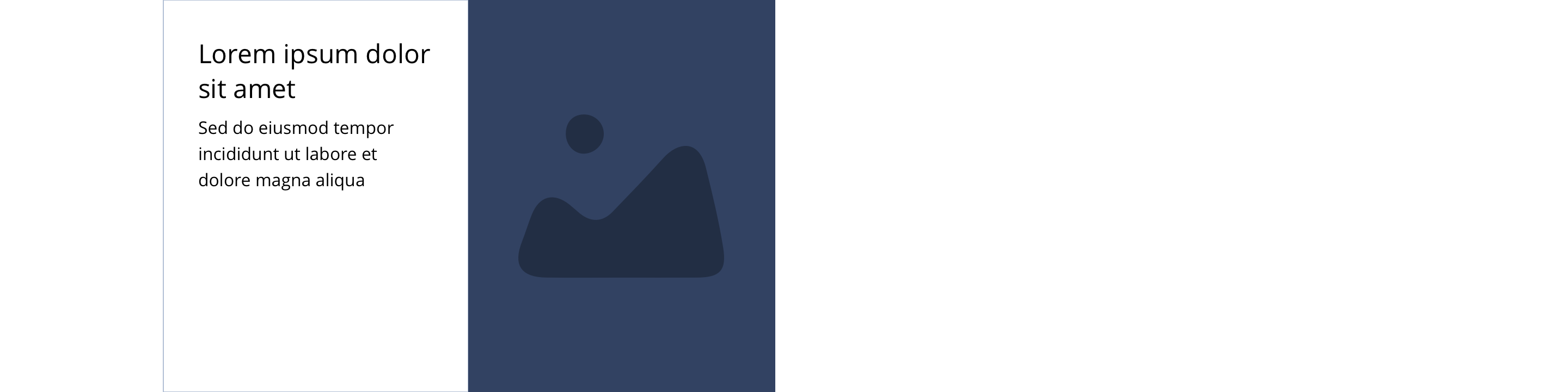

Example shows Link - Block 2 spanning 1/2 of the grid.

---

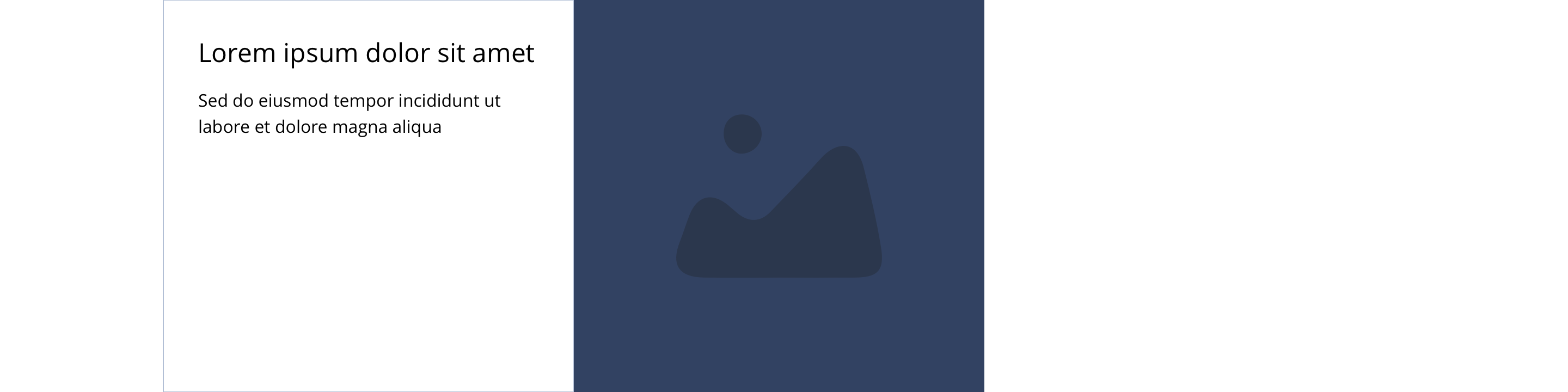

Desktop

1/2

2/3

---

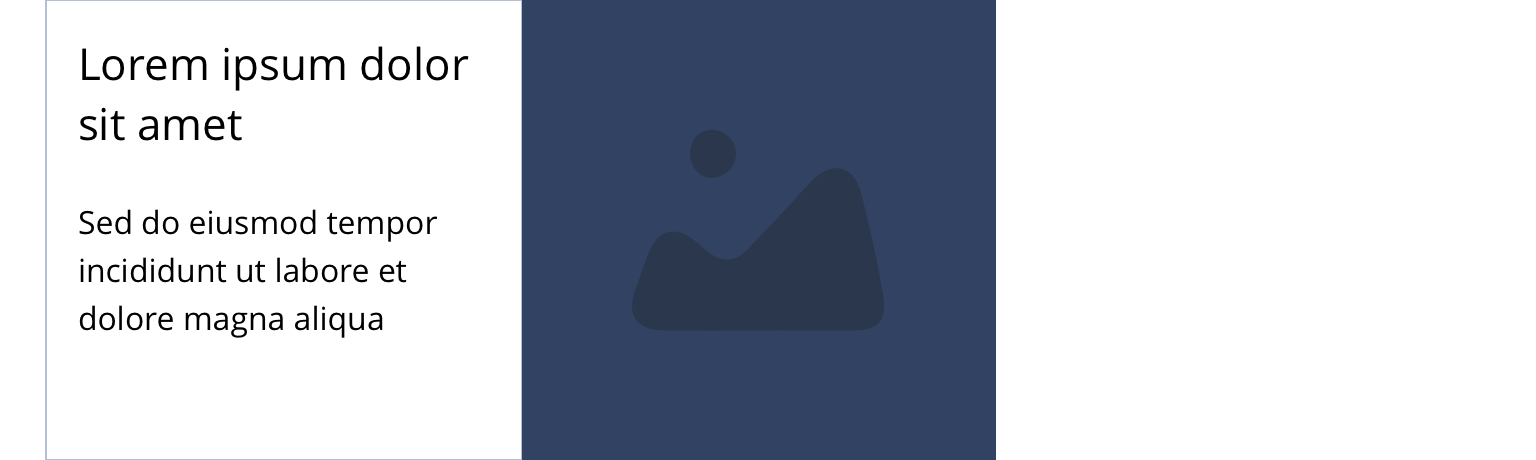

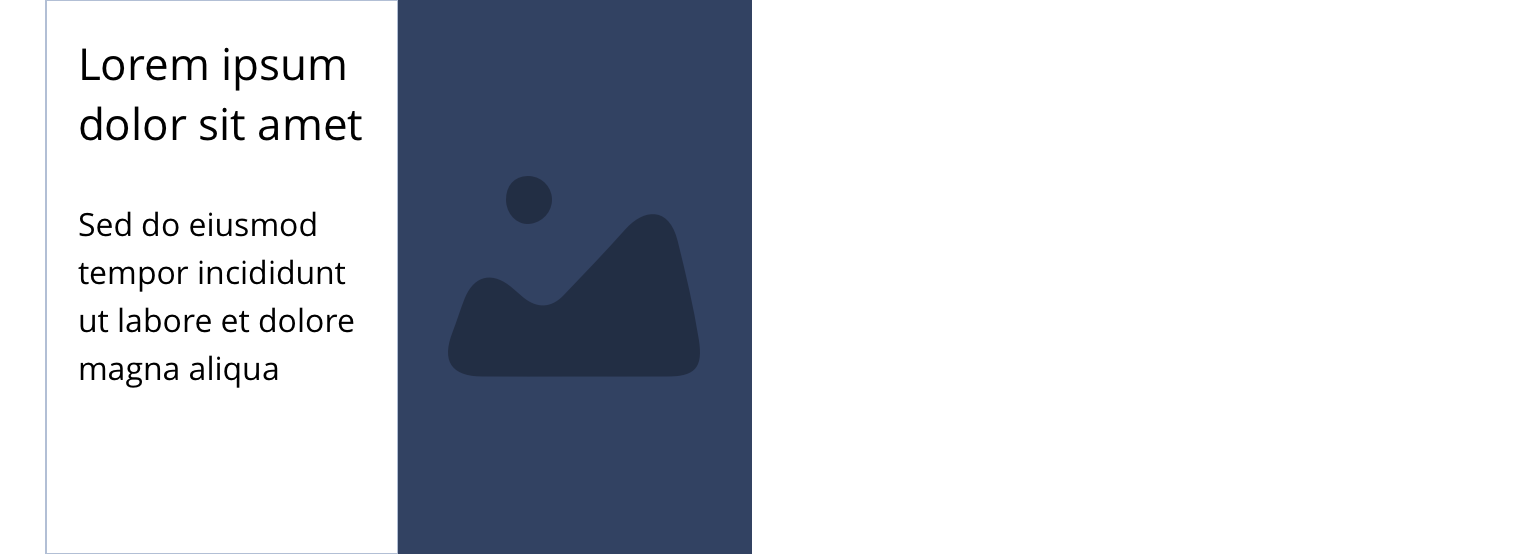

Tablet

1/2

2/3

---

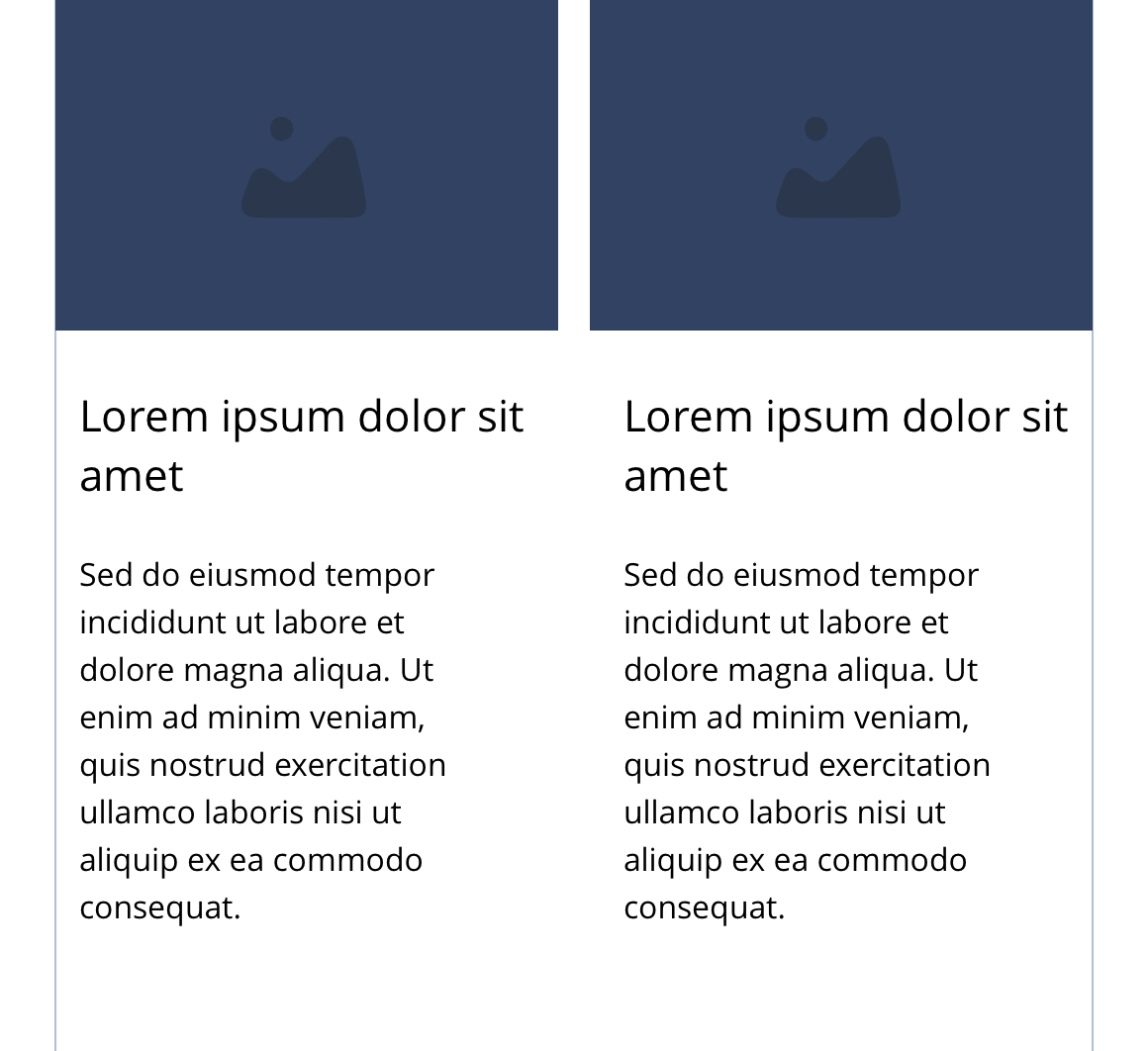

Mobile

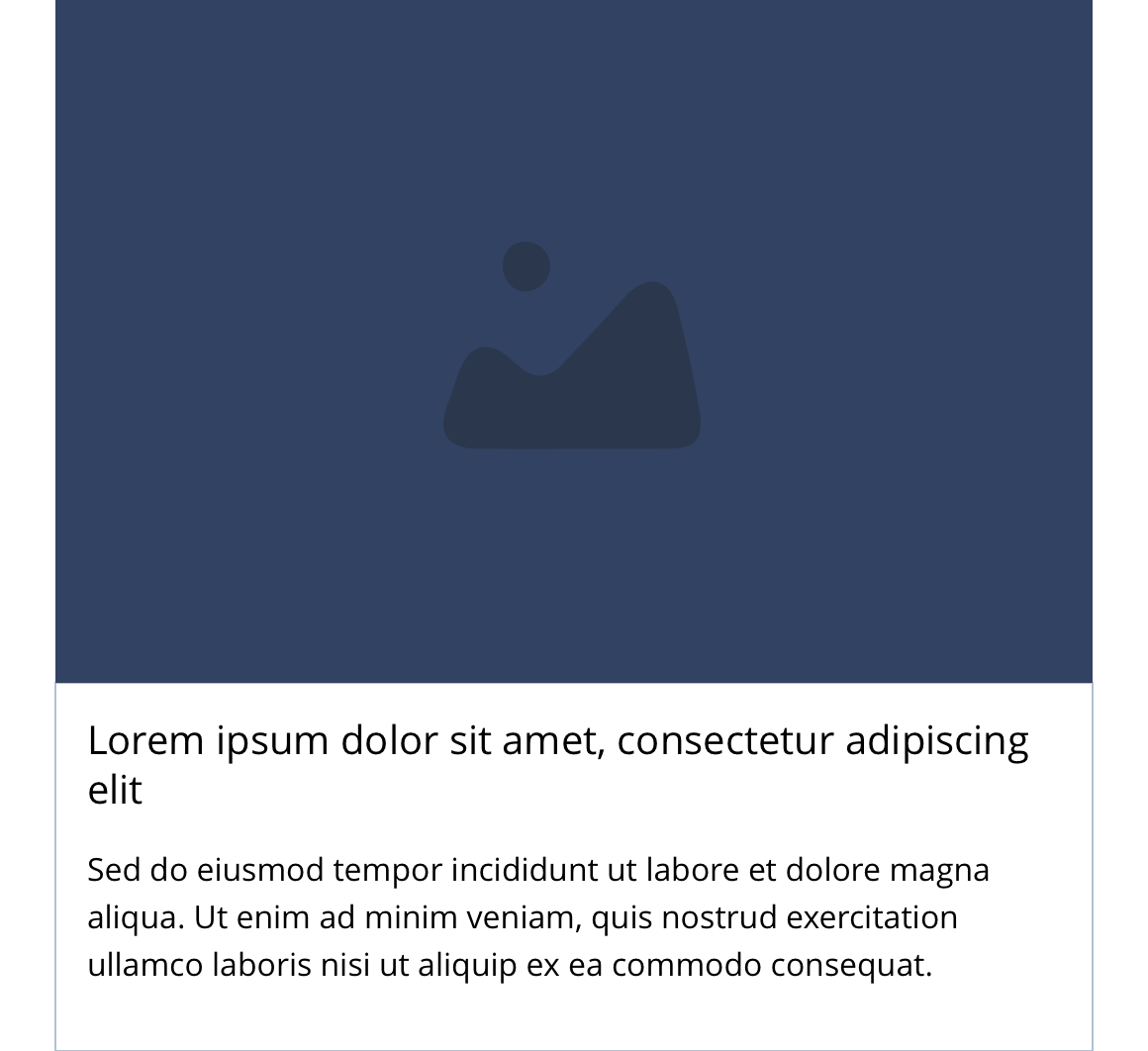

1(Full Width)

1/2

---

Specification

This provides guidance on the build, layout and content options for this component.

Layout specification

---

Component item	Requirement & purpose	Optional or mandatory	CMS options
Minimum height	Sets minimum height of component for each breakpoint.Component expands based on content.Each block within the container will match the height of the tallest block.	n/a	Set globally via SGM and affects all instances of the component on the site.
Background colour	Allows user to set a background colour on entire responsive block.	Optional	Choose from colour palette.
Content alignment	Controls the alignment of text and call to action in block.	Mandatory	Vertically align top, centre or bottom.Horizontally align left, centre or right.
Content alignment on mobile	Controls the alignment of text and call to action in block.	Mandatory	Vertically align top, centre or bottom.Horizontally align left, centre or right.
Text/image ordering	Controls order of text and image.	Mandatory	Text left or right.
Text padding top, bottom, left and right	Allows control of the spacing around the text within this component.	Mandatory	On/off for each individual padding property.The value is set within the SGM.
Block width	Block can span 1/2, or 2/3 of the grid. Content is always full width on mobile.	Mandatory	Desktop: 1/2 or 2/3.Tablet: 1/2 or 2/3.Mobile: 1 (Full width), 1/2.
Horizontal View in Mobile	Toggle to turn on the horizontal view for mobile break-point	Optional	On/Off toggle button
Full border	Allows a full width border to be added to the component.	Optional	On/off.
Full border width	Sets the border width.	Optional	Add a px value.
Full border colour	Sets the border colour.	Optional	Choose from colour palette.
Border	Allows a boxed width border to be added to the bottom of the component.	Optional	On/off.
Border width	Sets the border width.	Optional	Add a px value.
Border colour	Sets the border colour.	Optional	Choose from colour palette.
Drop shadow	Adds a default drop shadow around entire block.Default value - 0 0 13px 0 RGBA (93,113,131,.2).	Optional	On/off.
Heading text	Sets heading text.	Optional	Text input.
Heading element	Sets H2, H3, H4 or H5 on component.	Optional	Select heading element.
Heading style	Allows user to choose where more then one type of heading style may be present (i.e. multiple H2's).	Optional	Select heading style.
Heading colour	Sets heading colour.	Optional	Choose from colour palette.
Paragraph text	Sets paragraph content.	Optional	Text input.
Paragraph style	Sets paragraph style.	Optional	Paragraph style select.
Paragraph colour	Sets paragraph colour.	Optional	Choose from colour palette.
WYSIWYG	Allows user to format text where additional styles may be required.	Optional	WYSIWYG.
Foreground image	Allows user to set the foreground image.	Mandatory	Image uploader.
Foreground image animate	Allows users to switch On/Off the animation functionality for the foreground image.	Optional	On/off.
Select animation	Allow user to select animation from the drop-down list.	Optional	Select list
Duration	Set how long in seconds the animation will take to run	Required	Numeric Input
Delay	Set a start delay on the animation in seconds	Optional	Numeric Input
Iteration	Set the number of times the animation should run	Optional	Numeric Input (Maximum two)
offset	Set the animation to start at a specific offset before or after the element has entered the view port	Optional	Numeric Input (Pixel)
Image alt text	Adds alt text to an image.	Mandatory	Text input.
Lazy Load Foreground	Allows users to switch On/Off the Lazy Load functionality for the foreground image.	Optional	On/Off
Margin bottom	Controls spacing below component. Set to 16px to match the gutters.	n/a	n/a

Animate container (To add animation to component)

Select animation	Allow user to select animation from the drop-down list.	Optional	Select list
Duration	Set how long in seconds the animation will take to run	Required	Numeric Input
Delay	Set a start delay on the animation in seconds	Optional	Numeric Input
Iteration	Set the number of times the animation should run	Optional	Numeric Input (Maximum two)
offset	Set the animation to start at a specific offset before or after the element has entered the view port	Optional	Numeric Input (Pixel)

Interaction

These are the interactive aspects of the component.

Interaction
None

Style Guide Manager

These are the Style Guide Manager settings that are specific to this component. For global settings see the Style Guide Manager section.

Property	Default	SGM override
Minimum height	Desktop - 440px Tablet - 400px Mobile - 584px	Desktop Tablet Mobile

Examples in-situ

See Link - Block 1 - Image & text vertical for layout examples (NB. the no link version has no link)

Usage

General usage dos and don'ts

✅ Dos	❌ Don'ts
Ensure the text is legible.	Do not use a background image that makes the text hard to read.
Images scale to fit the container they are in. This component has been created to cover a range of scenarios, and images will automatically scale to fit the container they are in. Where smaller images are required, whitespace will need to be added left and right to avoid it scaling.
Read our guidance on imagery.
Read our guidance on videos.
Read our guidance on the use of WYSIWYGs.
