Responsive block container

The Responsive block container is made up of several configurable elements, allowing for a range of customisable layouts. Text, button positioning and background colour/image settings can all be configured to create a number of layout variations.

It also contains a drop zone where you can drag and drop the responsive blocks.

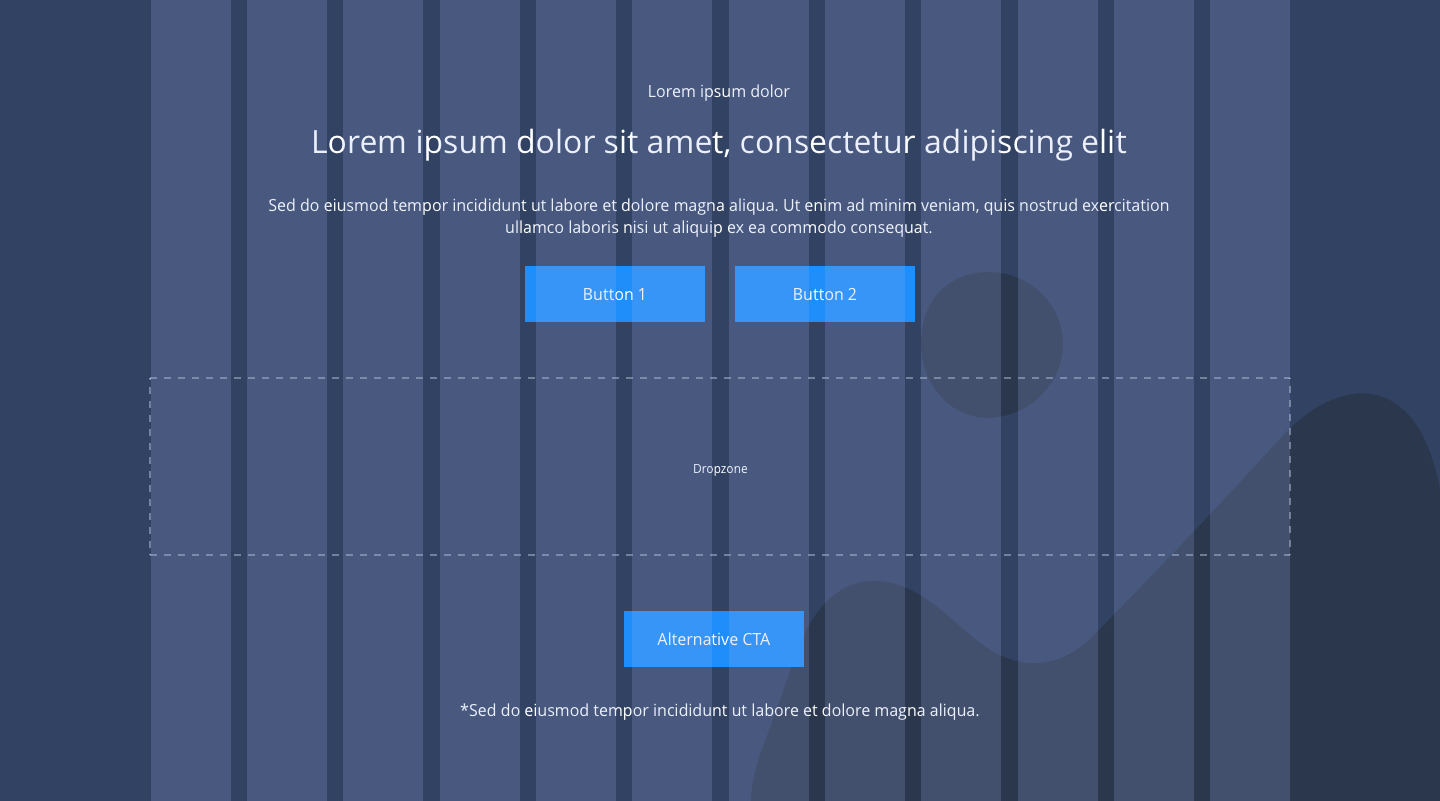

Overview

Overview

Responsive block dropzone spans 12 columns, within a container and the background image or colour is set to full width.

---

Desktop

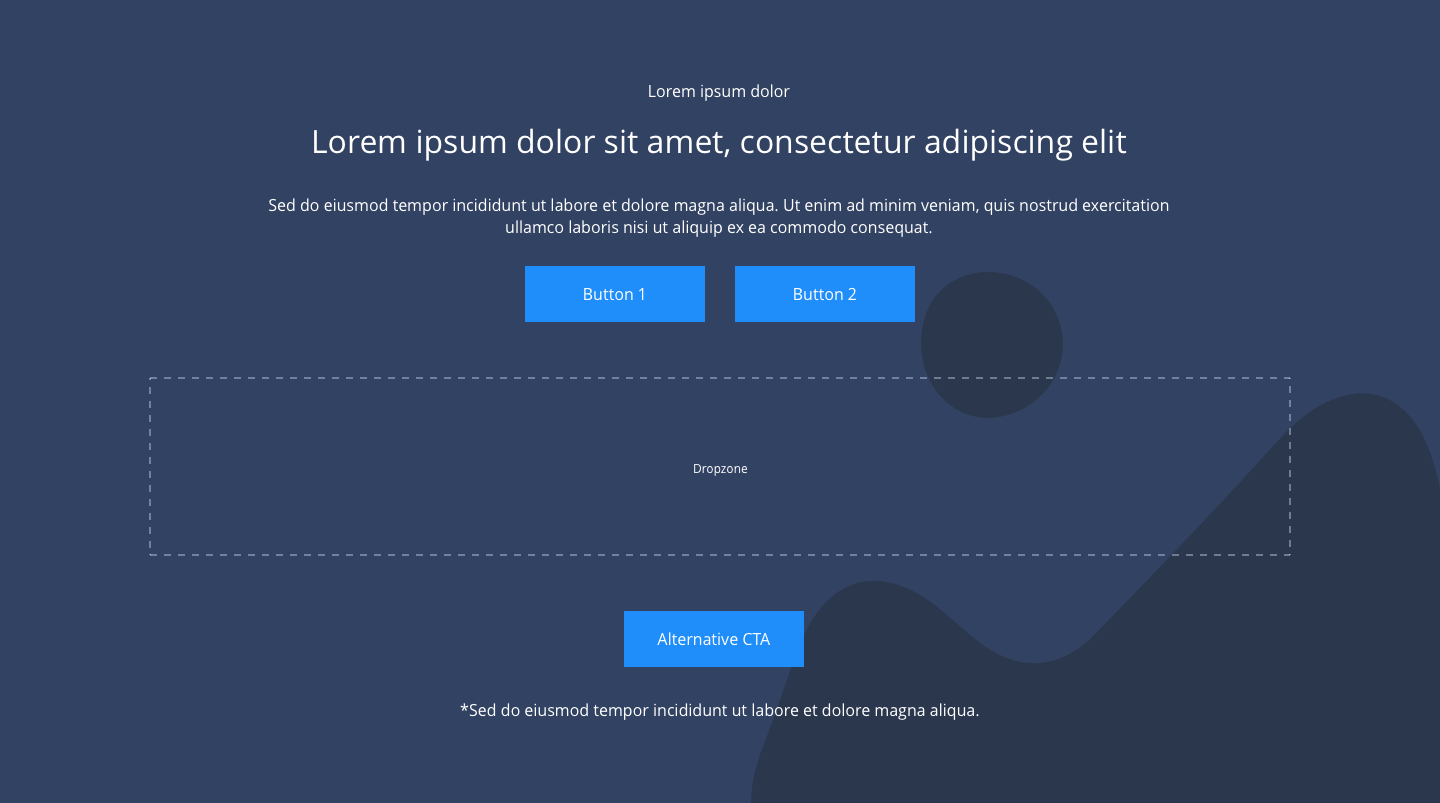

Centred

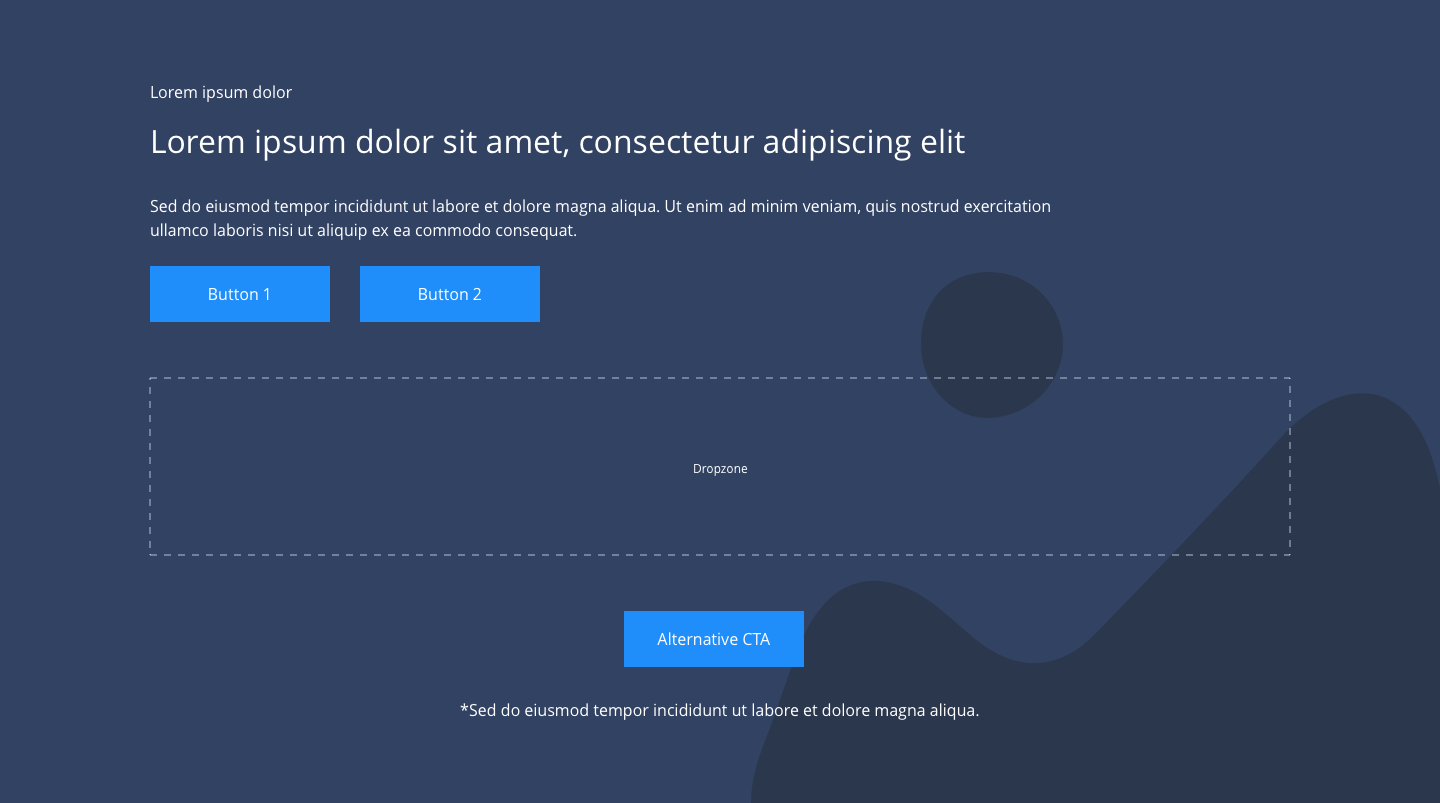

Left

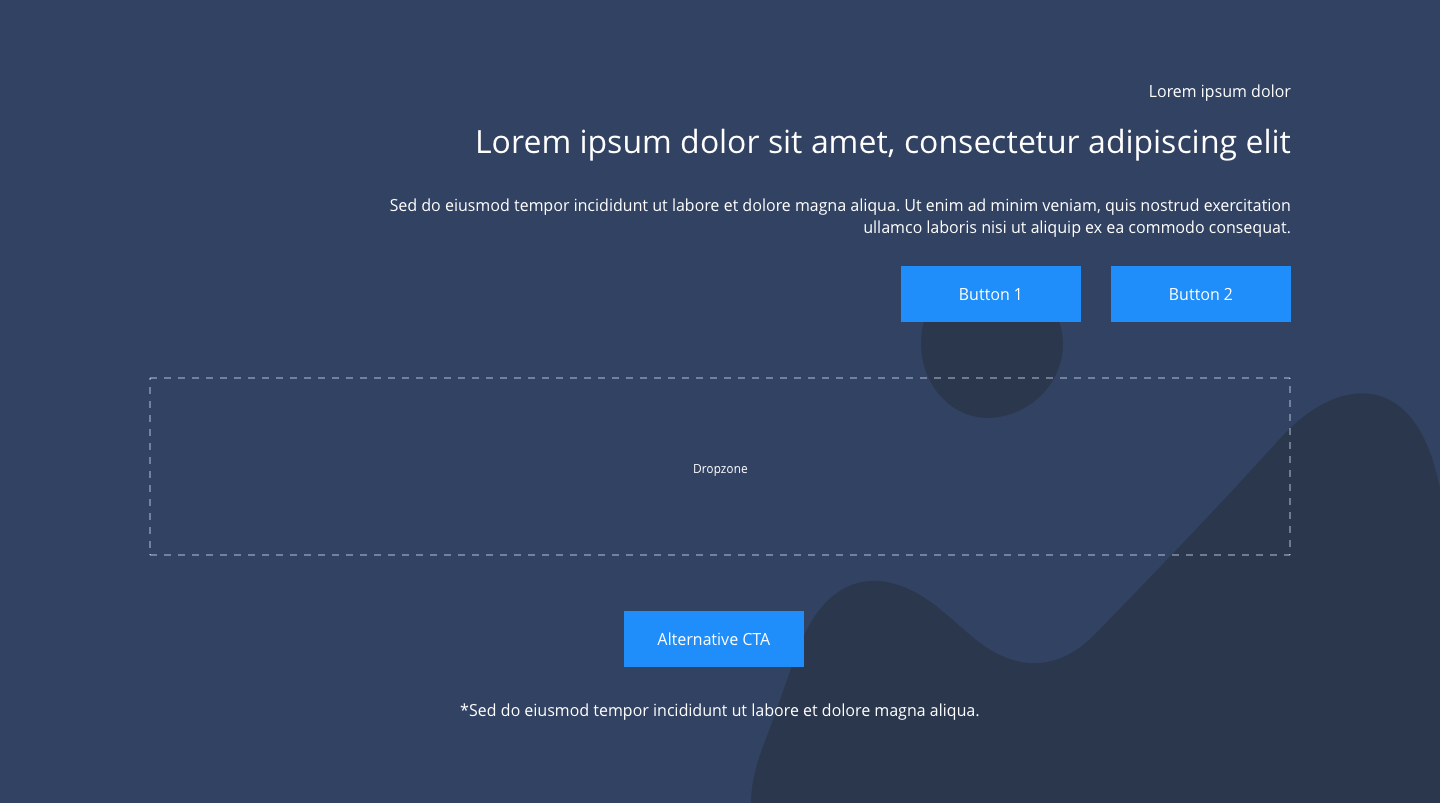

Right

Tablet

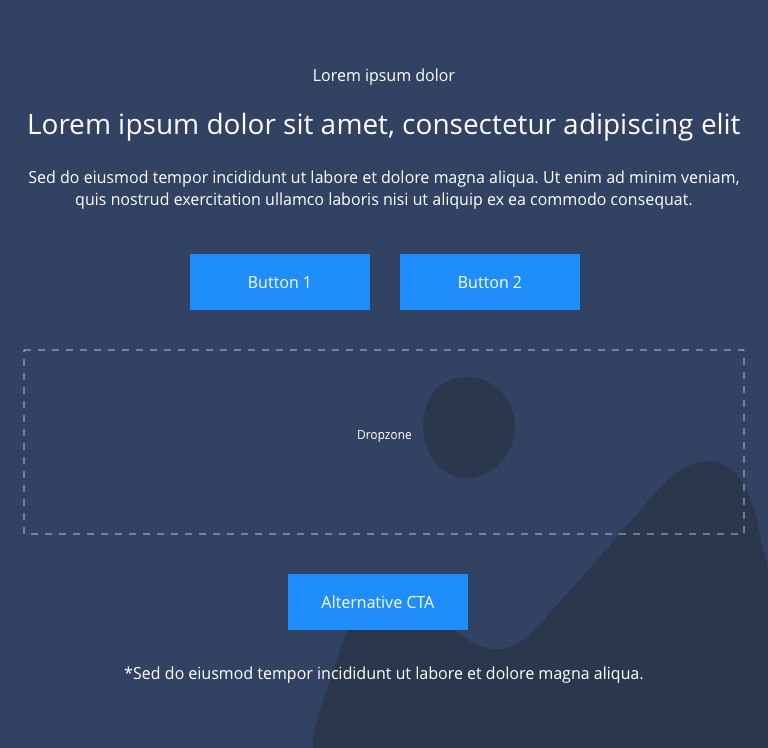

Centred

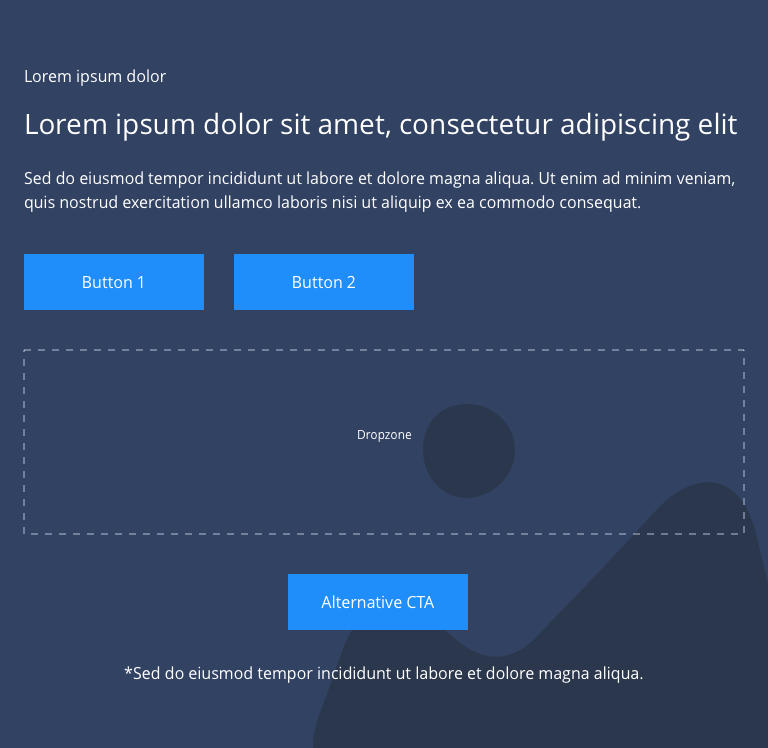

Left

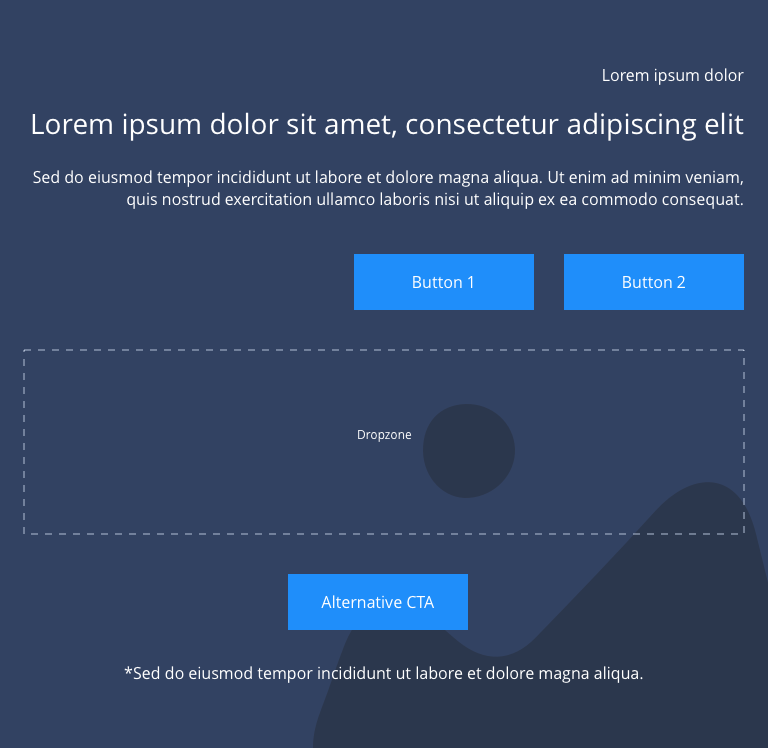

Right

Mobile

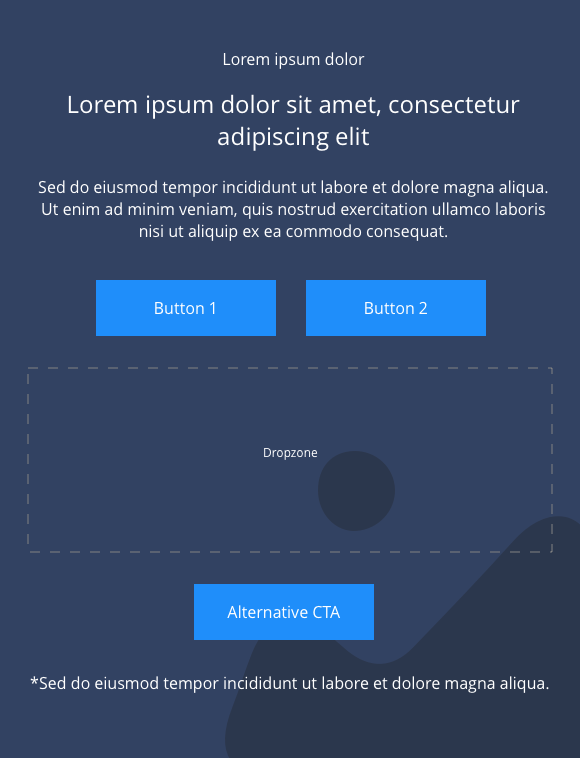

Centred

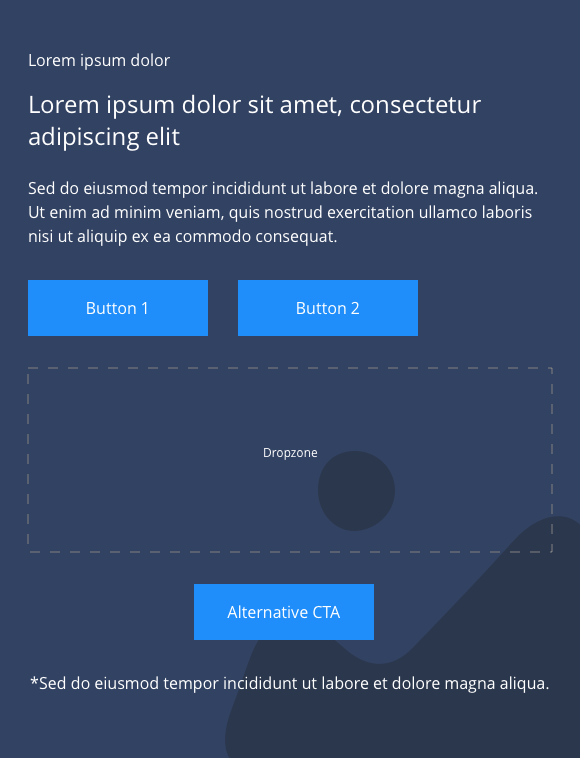

Left

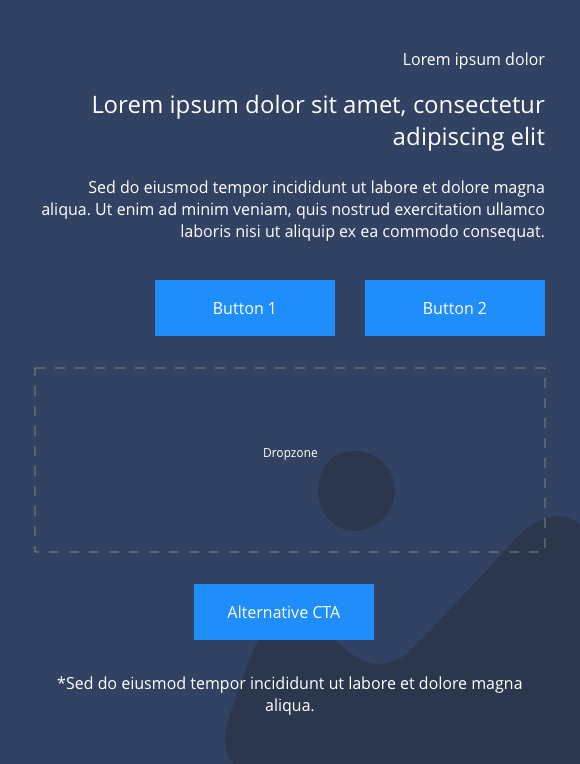

Right

Specification

Specification

This provides guidance on the build, layout and content options for this component.

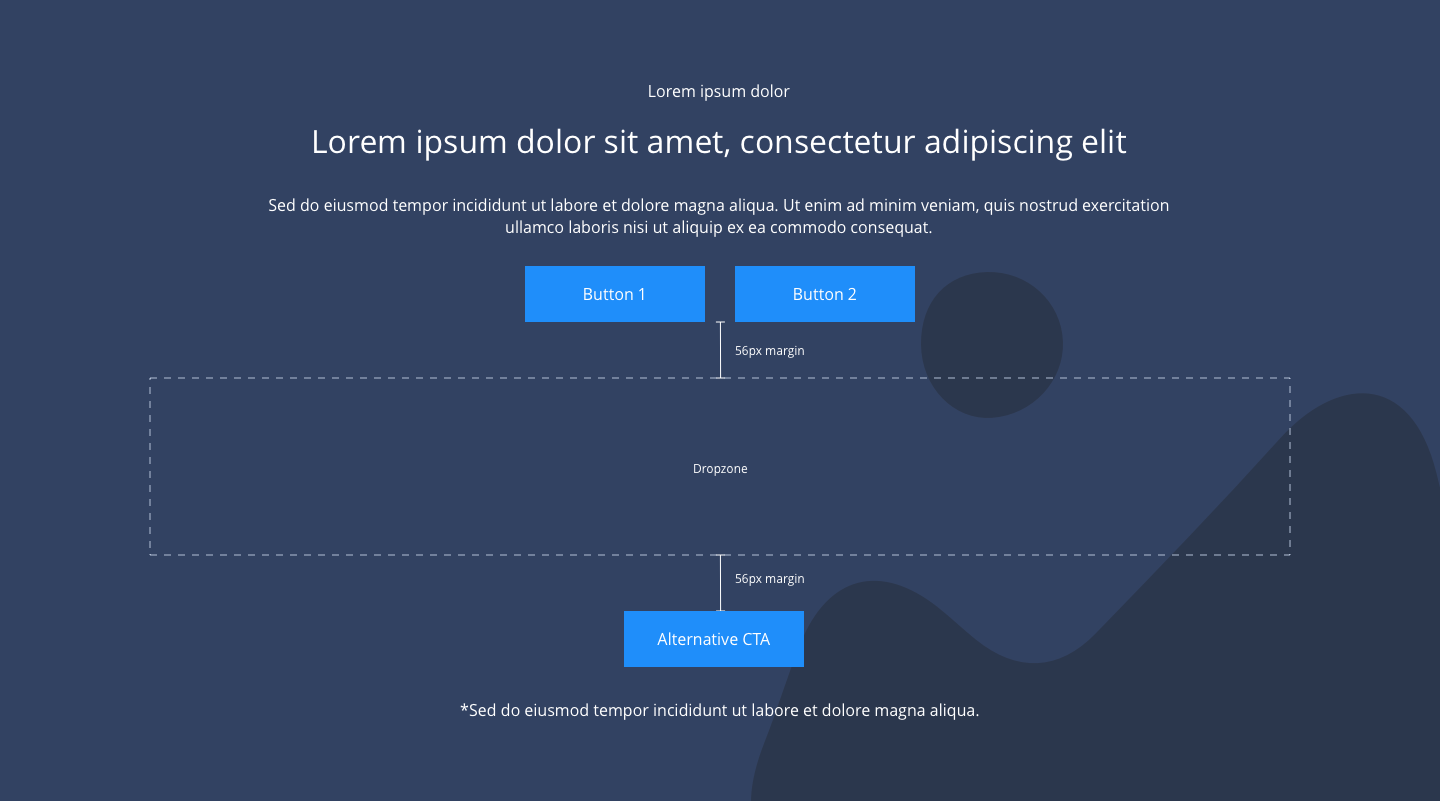

Layout specification

---

Component item	Requirement & purpose	Optional or mandatory	CMS options
Height	Expands based on size of content.	n/a	n/a
Width	Text spans 10 columns max on desktop. 12 columns on tablet and below. The container is set to full width. Content is constrained to the width of the grid. The content is full width by default but can be restricted to either 10 or 8 columns on desktop and tablet. The content is always full width on mobile.	Mandatory	12, 10 or 8 column width. Select boxed or full width for dropzone.
Mobile Width	Option to have media width for mobile break-point.	Optional	Full width / Boxed width
Lazy Load toggle	Allows the user to switch On/Off the Lazy Load functionality for the background image.	Optional	On/Off
Desktop background image	Allows user to set a background image. This is full width and set to cover.	Optional	Image uploader.
Desktop background image alignment	Allows control of background image alignment.	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Mobile background image	Allows user to set a background image. This is full width and should be set to cover.	Optional	Image uploader.
Background image aria label	The aria-label allows us to specify a string to be used as the accessible label.	Optional	Text input field
Mobile background image alignment	Allows control of background image alignment.	Optional	Vertically align top, centre or bottom. Horizontally align left, centre or right.
Show/hide background image on mobile	Allows editor to hide background image on mobile breakpoint.	Optional	Show or hide.
Background colour	Allows user to set a background colour on the component.	Optional	Choose from colour palette.
Content alignment	Controls content horizontal alignment.	Optional	Left, centre or right.
Full border	Allows a full width border to be added to the component.	Optional	On/off.
Full border width	Sets the border width.	Optional	Add a px value.
Full border colour	Sets the border colour.	Optional	Choose from colour palette.
Dropzone width	The content within the dropzone can be constrained to the the box grid or set to full width.	Mandatory	Boxed width or full width.
Show/hide gutters	Allows control of spacing between blocks. NB - where gutters are turned off, drop shadows should not be used.	Mandatory	On/off.
Padding top and bottom	Allows control of the top and bottom spacing within this component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Margin bottom	Allows control of the spacing below the component. Set globally via the SGM.	Mandatory	Large, medium, small or none.
Pre-heading text	Allows user to set a pre-heading before H1.	Optional	Text input.
Pre-heading text colour	Sets pre-heading colour.	Optional	Choose from colour palette.
Heading text	Sets heading text.	Optional	Text input.
Heading element	Sets H2, H3, H4 or H5 on component.	Optional	Select heading element.
Heading style	Allows user to choose where more then one type of heading style may be present (i.e. multiple H2's).	Optional	Select heading style.
Heading colour	Sets heading colour.	Optional	Choose from colour palette.
Paragraph text	Sets paragraph content.	Optional	Text input.
Paragraph style	Sets paragraph style.	Optional	Paragraph style select.
Paragraph colour	Sets paragraph colour.	Optional	Choose from colour palette.
WYSIWYG	Allows user to format text where additional styles may be required.	Optional	WYSIWYG.
Link 1 (above dropzone & below dropzone)	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Link 2 (above dropzone & below dropzone)	Allows user to link to a URL or launch a modal.	Optional	Link text input. Link style select. Link URL input. Target select: Same window or open in new. Modal ID input.
Button Shapes	Allows user to select various button shapes	Optional	Dropdown
WYSIWYG (below dropzone)	Allows user to format text where additional styles may be required.	Optional	WYSIWYG
Footnote text and colour	Sets footnote content and colour.	Optional	Text input. Choose from colour palette.

Interaction

These are the interactive aspects of the component.

Interaction
Link 1 links to a defined page or can launch a modal.
Link 2 links to a defined page or can launch a modal.
Alternative CTA links to a defined page or can launch a modal.

Style Guide Manager

These are the Style Guide Manager settings that are specific to this component. For global settings see the Style Guide Manager section.

Property	Requirement & purpose	Default	SGM override
Margin above drop zone	Sets the site wide margin above the drop zone	Desktop - 24px Tablet - 24px Mobile - 24px	Desktop Tablet Mobile
Margin below drop zone	Sets the site wide margin below the drop zone	Desktop - 32px Tablet - 32px Mobile - 32px	Desktop Tablet Mobile

Examples in-situ

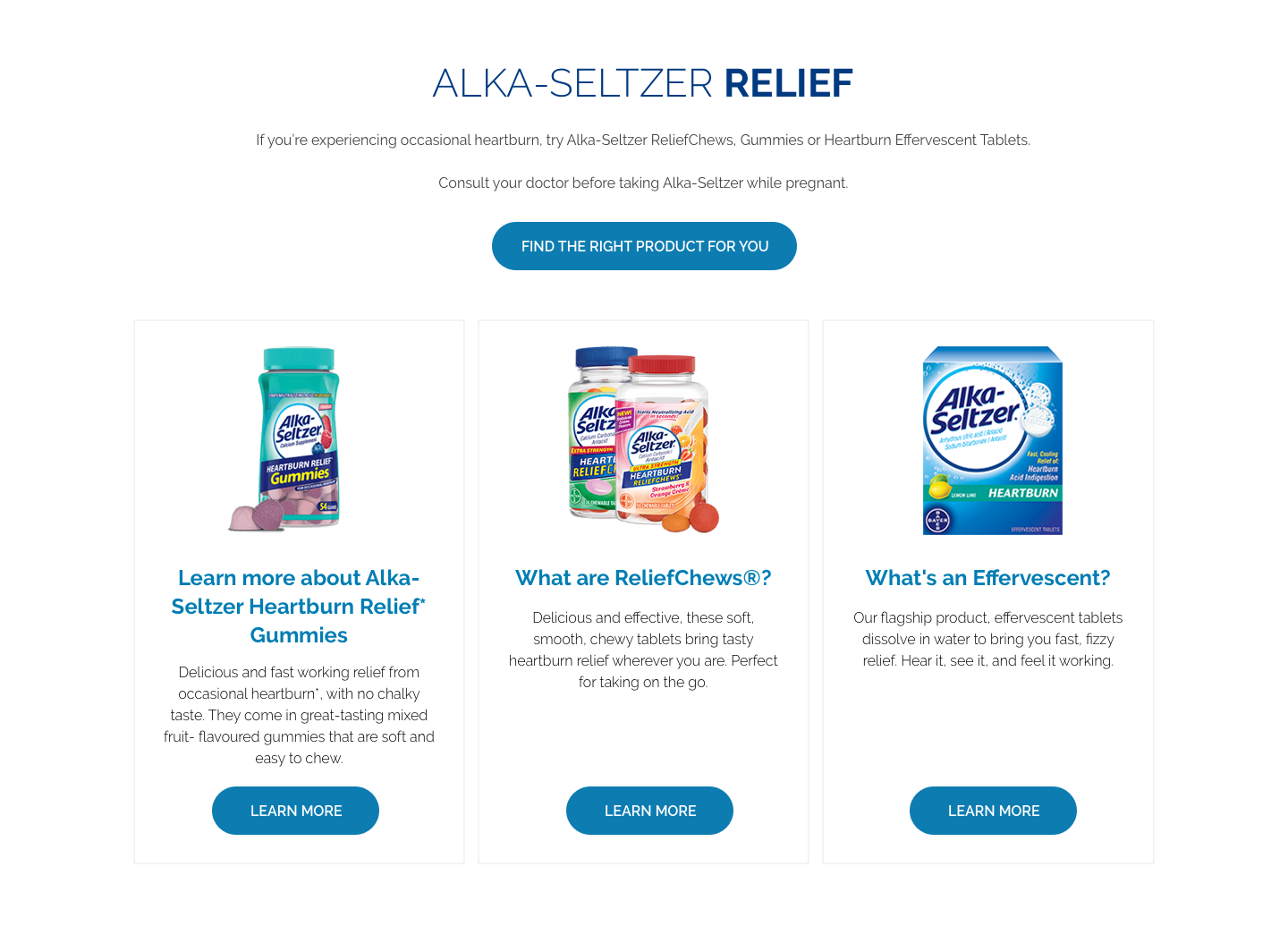

Desktop

Alka-Seltzer

---

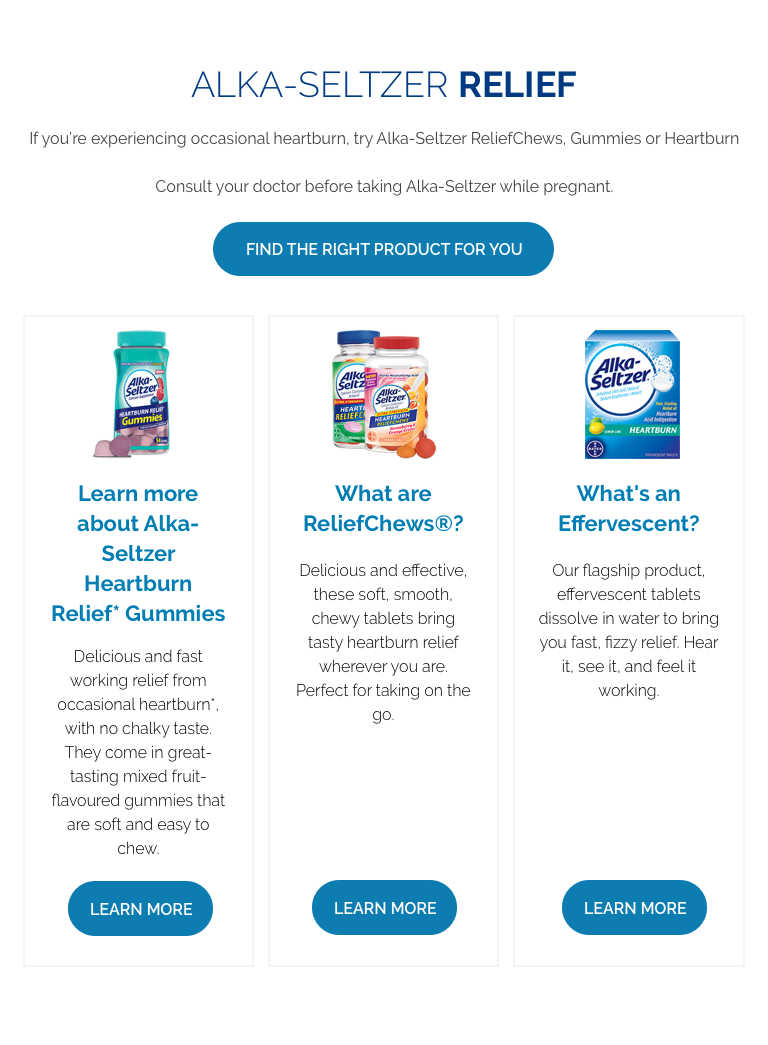

Tablet

Alka-Seltzer

---

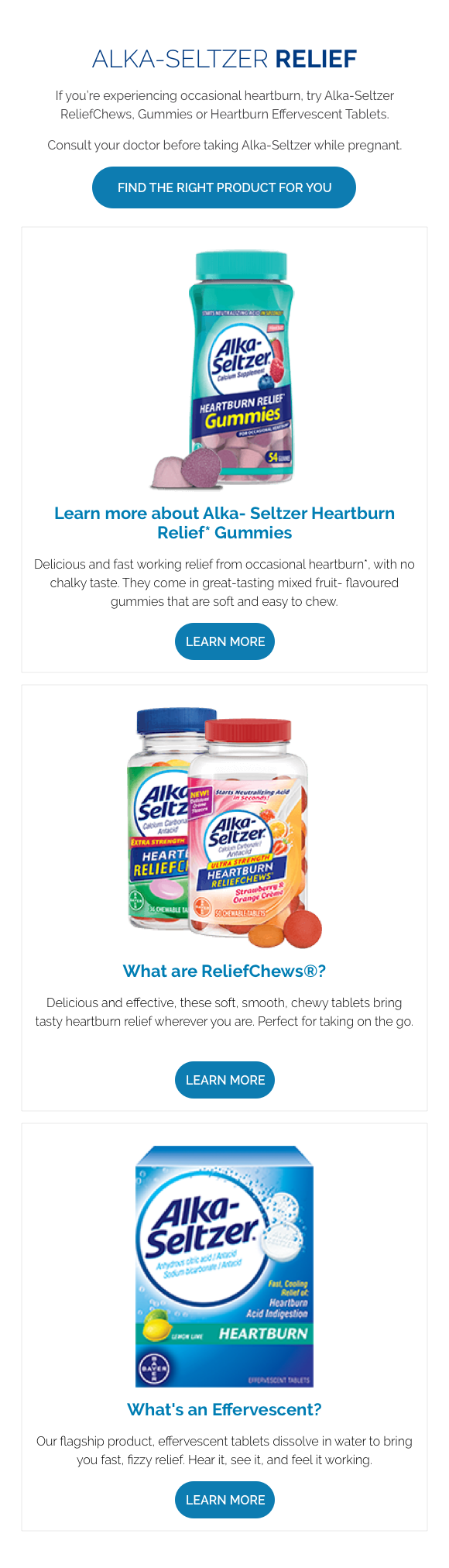

Mobile

Alka-Seltzer

---

Usage

General usage dos and don'ts

✅ Dos	❌ Don'ts
Ensure the text is legible.	Do not use a background image that makes the text hard to read.
Only use Responsive Blocks within the Responsive Block Container.
Read our guidance on imagery.
Read our guidance on the use of videos.
Read our guidance on the use of WYSIWYGs.
